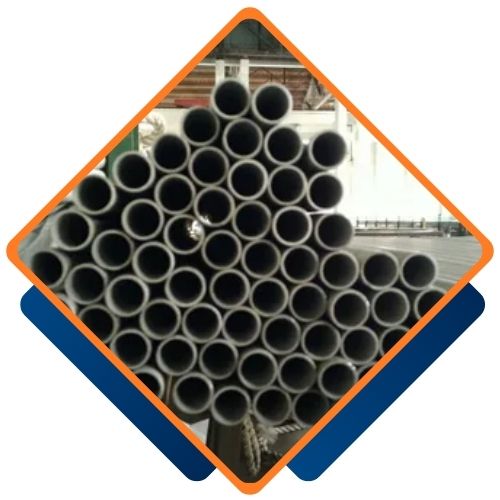

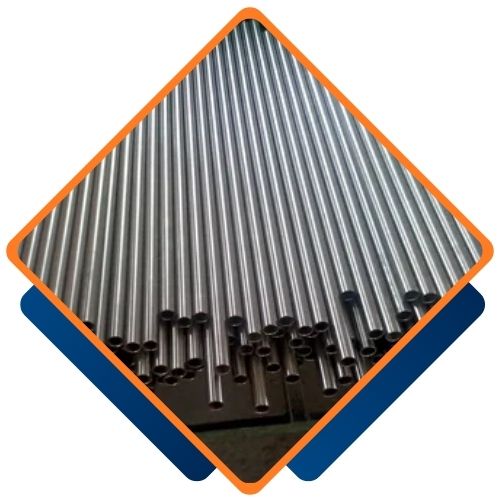

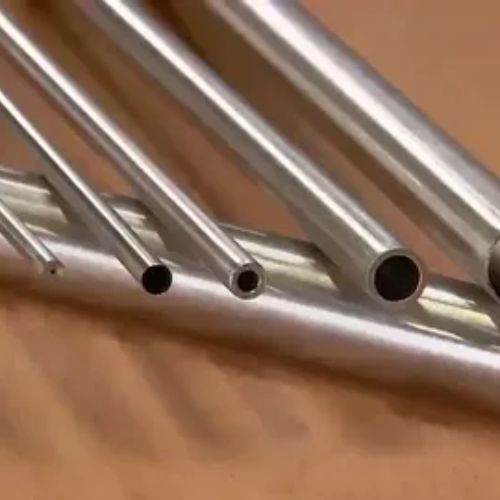

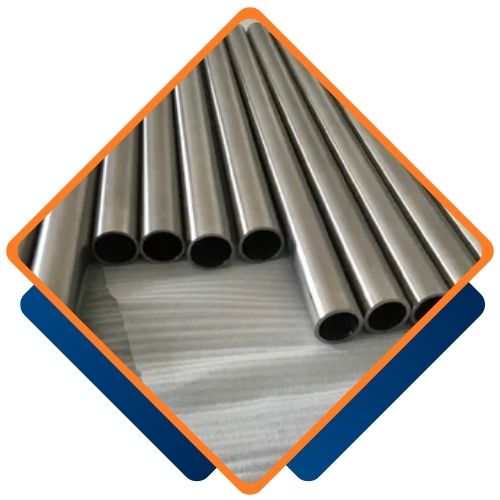

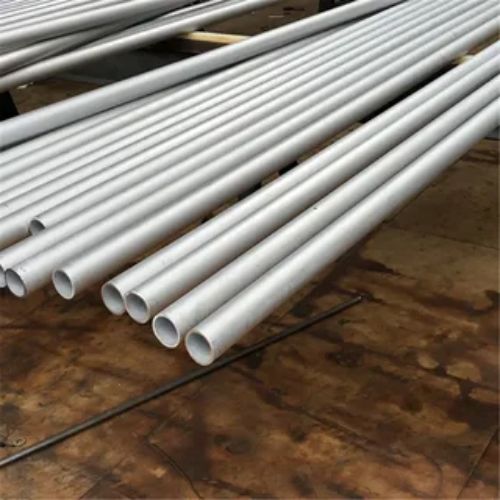

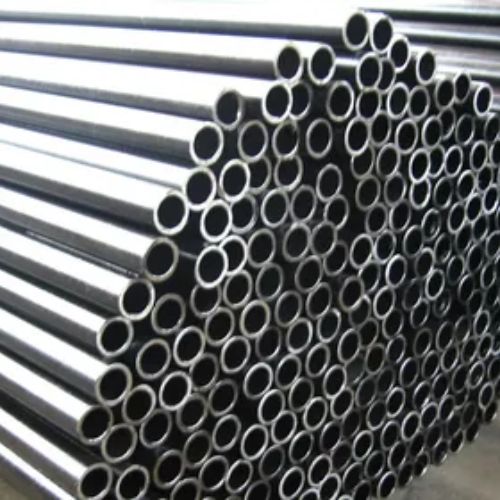

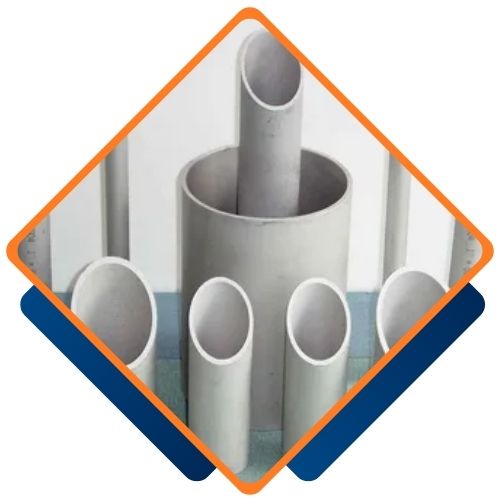

Ojas Pipes and Tubes is a prominent manufacturer and exporter of high-quality Titanium Seamless Tubing from Kolkata, India. With its commitment to precision engineering and quality, Ojas provides corrosion-proof and high-strength titanium tubing for various industrial applications. Leveraging the latest technology and quality control protocols, the company guarantees high-performance and reliability in products. Ojas supplies both domestic and international markets with customized solutions as per client specifications. Their seamless tubing made of titanium is of international quality, and they are a recognized name in aerospace, marine, chemical processing, and medical equipment industries.
Titanium Seamless Tubing consists of 99.2% pure titanium with trace amounts of oxygen, nitrogen, carbon, and iron. The most widely employed grade is Titanium Grade 2. It has excellent corrosion resistance, high strength-to-weight ratio, and good weldability. Some of its mechanical properties are tensile strength of about 344 MPa (50,000 psi), yield strength of 275 MPa (40,000 psi), and elongation of about 20%. Its low density of 4.51 g/cm³ and high melting point of greater than 1660°C make it suitable for applications that need strength, endurance, and thermal resistance.
| Standard | ASTM, AISI, GB, JIS, customers’ requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers’ request |
| Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or bevelled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
| B. Gloss #400,Mirror #600 – #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |

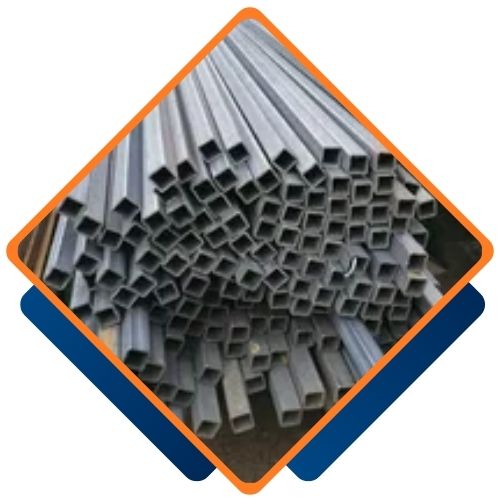

| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Seamless Tubing from Ojas Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Ojas Pipes and Tubes, a leading supplier of Titanium Seamless Tubing in Kolkata, India, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Ojas Pipes and Tubes, we provide custom sizes of Titanium Seamless Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Titanium Seamless Tubing is put to extensive use in a wide range of high-performance industries on account of its unrivalled strength, light weight, and corrosion resistance. It finds application in aerospace in hydraulic systems, fuel lines, and structural components. The chemical and petrochemical sectors apply it to heat exchangers and piping systems for corrosive fluids. Its resistance to saltwater makes it useful in marine applications as well, so it’s applied to offshore and naval components. In the medical community, it is utilized in implant surgery and instrumentation because of its biocompatibility. Also, titanium tubing is used in power generation, automotive exhaust systems, and sporting equipment with high performance.
