Home > Stainless Steel > Stainless Steel Perforated Tubing

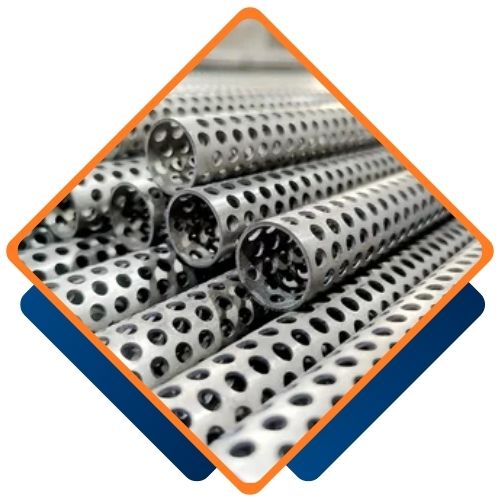

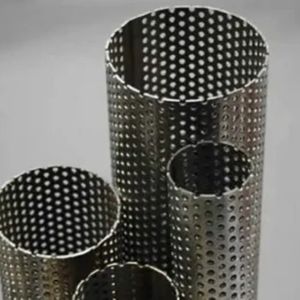

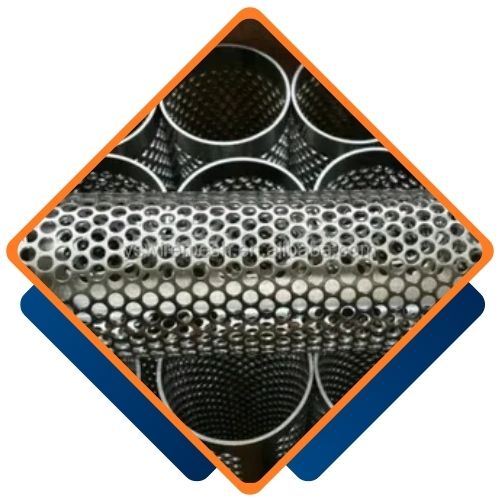

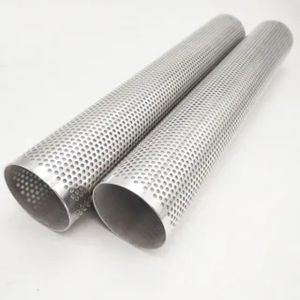

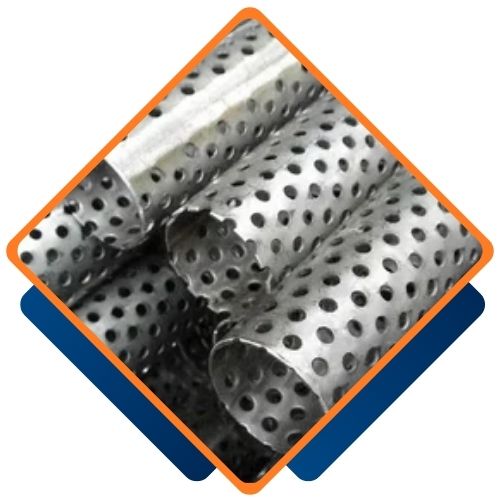

Ojas Pipes and Tubes, a well-respected manufacturer and supplier located in Kolkata, India, is known for its high-quality Stainless Steel Perforated Tubing, which serves a wide range of industrial and commercial needs. With years of expertise and cutting-edge manufacturing techniques, Ojas produces precision-engineered perforated tubes that adhere to international quality standards. These tubes are built for exceptional strength, corrosion resistance, and filtration efficiency, making them perfect for tough environments. Ojas prioritizes innovation, customization, and prompt delivery, serving clients both in India and internationally. Their stainless steel perforated tubing solutions guarantee reliability, durability, and top-notch performance across various sectors, including construction, automotive, and filtration.
Stainless Steel Perforated Tubing is generally made from grades like SS 304, SS 316, and SS 321, featuring essential elements such as chromium (18–20%), nickel (8–12%), and low carbon content to boost corrosion resistance. These tubes provide impressive tensile strength (~515 MPa), yield strength (~205 MPa), excellent elongation (~40%), and remarkable hardness, making them ideal for both filtration and structural uses. The perforations are meticulously crafted to guarantee uniformity and consistent flow performance. Ojas maintains strict dimensional tolerances, smooth edges, and a superior surface finish, ensuring dependable mechanical properties under various pressures and environmental conditions.
| ASTM | ASTM A249, A269, A270 |
| OD. | 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes stainless steel welded tubes also available |
| Thickness | 0.2mm to 15mm |
| Hole size | 3mm dia on a 6mm pitch |
| Opening diameter | 0.2mm to 100mm |
| Material | SS 304, SS 304L,SS 316,SS 316L, SS201 |
| Finish | BA Finish inside and outside, Perforated finish inside and outside |
| Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Mill Test Certificate | EN10204 3.1 |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
| STAINLESS STEEL Perforated TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304L | S30403 | 1.4306 |
| 316 | S31600 | 1.4436 |
| 316L | S31603 | 1.4404 |
Choosing Stainless Steel Perforated Tubing from Ojas Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Ojas Pipes and Tubes, one of the largest suppliers of Stainless Steel Perforated Tubing in Kolkata, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Yes, we offer custom sizes for Stainless Steel Perforated Tubing to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
Stainless Steel Perforated Tubing finds extensive use in filtration systems, ventilation panels, exhaust systems, noise control panels, and architectural facades. Its perforated structure facilitates efficient airflow, drainage, and filtration while preserving structural integrity. Industries such as oil & gas, chemical processing, water treatment, automotive, and food processing depend on these tubes for applications like filter supports, speaker grilles, and more.
