Home > Stainless Steel >Stainless Steel 904L EFW Pipes

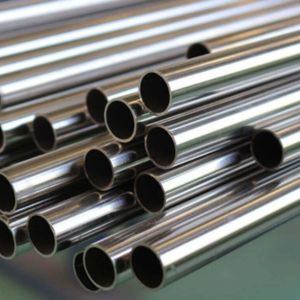

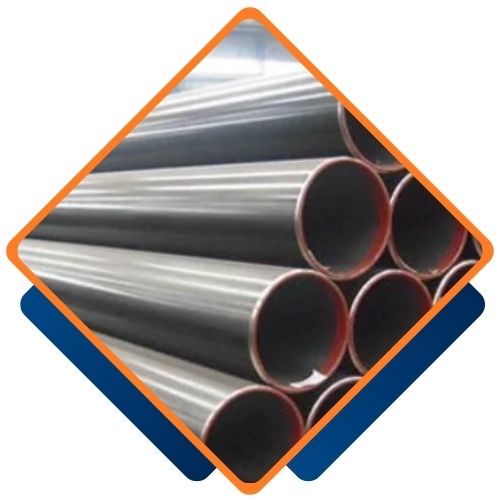

Ojas Pipes and Tubes, a well-respected manufacturer and supplier based in Kolkata, India, focuses on providing high-quality Stainless Steel 904L EFW Pipes tailored for high-performance needs across various industries. Renowned for their exceptional corrosion resistance, strength, and durability, these pipes are designed to meet the rigorous demands of sectors such as chemical processing, marine, oil and gas, and pharmaceuticals. Ojas employs cutting-edge manufacturing techniques alongside strict quality control measures to guarantee that every EFW (Electric Fusion Welded) pipe complies with international standards. With a solid reputation for reliability, timely delivery, and competitive pricing, Ojas Pipes and Tubes is a go-to name for premium stainless steel piping solutions.
Stainless Steel 904L EFW Pipes are crafted from an austenitic alloy that includes 19–23% chromium, 23–28% nickel, 4–5% molybdenum, 1–2% copper, and a low carbon content. This distinctive composition provides outstanding resistance to acid attacks, especially from sulfuric and phosphoric acids. In terms of mechanical properties, they boast a tensile strength of around 490 MPa, a yield strength of about 220 MPa, and an elongation of approximately 35%, ensuring they can withstand high-pressure conditions. The EFW process enhances the integrity and strength of the welds, making these pipes perfect for demanding applications that require exceptional corrosion resistance and mechanical performance.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | KS |
| SS 904L | N08904 | 1.4539 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 | SUS 904L | 904S13 | STS 317J5L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 904L EFW Pipes from Ojas Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Specific Heat (0-100°C) | 450 | J.kg-1.°K-1 |
| Thermal Conductivity | 11.5 | W.m -1.°K-1 |
| Thermal Expansion | 15.8 | mm/m/°C |
| Modulus Elasticity | 190 | GPa |
| Electrical Resistivity | 9.52 | μohm/cm |
| Density | 7.95 | g/cm3 |
We offer custom sizes for Stainless Steel 904L EFW Pipe to meet your specific needs. Our dedicated team at Ojas Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@ojaspipesandtubes.co.in.
Stainless Steel 904L EFW Pipes find extensive use in industries that need strong, corrosion-resistant piping systems. They are commonly utilized in chemical processing plants, seawater handling systems, pulp and paper industries, oil refineries, and gas processing facilities. These pipes are ideal for transporting aggressive fluids, acids, and gases in both high-temperature and high-pressure settings. Thanks to their excellent weldability, durability, and resistance to pitting, crevice corrosion, and stress corrosion cracking, Ojas Pipes and Tubes’ 904L EFW pipes guarantee safe and long-lasting performance in critical applications.
