Home > Stainless Steel >Stainless Steel 409 Pipes
Ojas Pipes and Tubes, a leading manufacturer and supplier based in Kolkata, India. We take pride in offering top-notch piping solutions, including our Carbon Steel BS3059-1 Pipes. These pipes are meticulously designed to meet rigorous British Standard specifications, ensuring they provide exceptional strength, durability, and reliability for high-pressure and high-temperature applications. At Ojas, we guarantee that every product is precision-engineered and meets global quality standards, catering to the diverse needs of industries around the world. With a strong reputation for excellence, innovation, and customer satisfaction, we deliver customized solutions for critical industrial and infrastructure projects.
When it comes to the composition and mechanical properties of our Carbon Steel BS3059-1 Pipes, they are made from high-grade carbon steel with carefully controlled levels of carbon, manganese, phosphorus, and sulfur. This attention to detail ensures optimal mechanical properties, with tensile strength ranging from 340 to 540 MPa and yield strength between 195 and 275 MPa. These pipes are known for their exceptional toughness and ductility, making them perfect for high-pressure and high-temperature applications. Their seamless construction, excellent machinability, and weldability further enhance their reliability in demanding environments.
| Item | Stainless Steel 409 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |

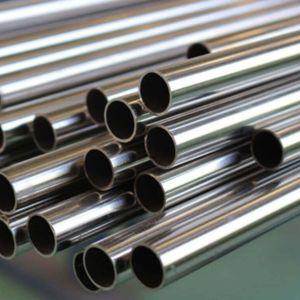

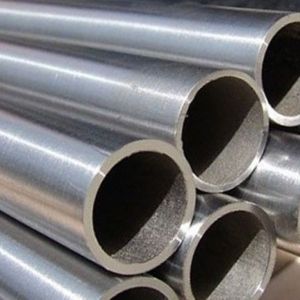

| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |

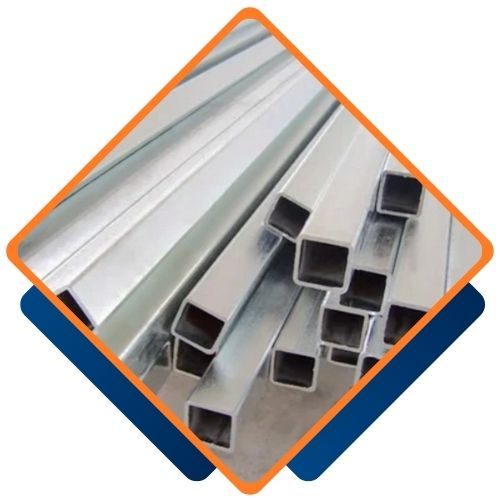

| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 409 | Min | – | – | – | – | – | 10.5 | – | – | – |
| max | 0.03 | 1.00 | 1.00 | 0.04 | 0.02 | 11.7 | – | 0.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 409 | 380 | 170 | 20 | 88 | 0.5t |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 409 Pipes from Ojas Pipes and Tubes ensures you get the high quality products you need. Our pipes are manufactured using advanced processes to ensure excellent durability and corrosion resistance. We adhere to strict industry standards with a focus on accuracy and quality. Our experienced team provides exceptional customer support, guiding you through your selection process. We offer competitive pricing and on-time delivery, ensuring you get your order when you need it. Trust Brydon to provide reliable and efficient pipeline solutions that will stand the test of time.
Ojas Pipes and Tubes, one of the largest suppliers of Stainless Steel 409 Pipes in Kolkata, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR | JIS | BS |
|---|---|---|---|---|---|---|
| 409 | 1.4512 | S40900 | X2CrTi12 | Z3CT12 | SUH409 | 409S19 |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
409 |
7800 |
200 |
11.0 |
11.7 |
12.4 |
25.8 |
27.5 |
460 |
600 |
Yes, we offer custom sizes for Stainless Steel 409 Pipes to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
Carbon Steel BS3059-1 Pipes find extensive use across various industries, including power generation, petrochemicals, and mechanical engineering. They play a vital role in boiler systems, superheaters, and heat exchangers, delivering dependable performance even under extreme pressure and temperature conditions. Additionally, these pipes are essential for industrial piping systems, ensuring the safe and efficient transportation of steam, gases, and fluids. With their robust design, adherence to international standards, and impressive service life, they are the go-to choice for critical infrastructure and industrial applications.
