Home > Stainless Steel > Stainless Steel 317 Tubing

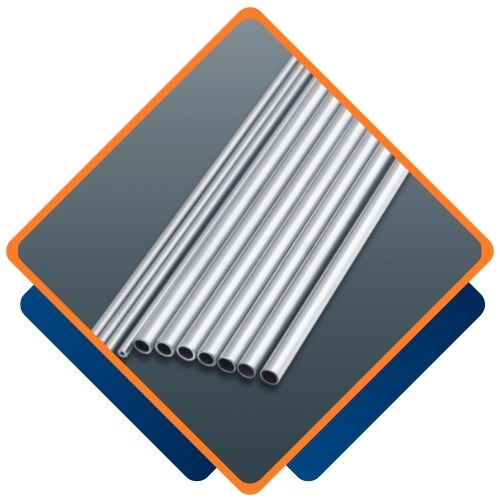

Ojas Pipes and Tubes, a leading manufacturer and supplier based in Kolkata, India, specializes in high-quality Stainless Steel 317 Tubing, perfect for industries that demand outstanding corrosion resistance and strength. This tubing is specifically designed for challenging chemical environments, as SS 317 is a molybdenum-bearing austenitic stainless steel that excels in resisting chemical attacks, particularly in acidic and chloride-rich settings. Ojas employs cutting-edge manufacturing techniques alongside rigorous quality control to provide tubing solutions that adhere to global standards. With a solid customer base spanning the chemical, marine, pharmaceutical, and food processing sectors, Ojas Pipes and Tubes guarantees dependable, high-performance stainless steel tubing for a variety of applications.
Stainless Steel 317 Tubing is made up of 18–20% Chromium, 11–15% Nickel, and 3–4% Molybdenum, featuring low carbon content (≤0.08%) and trace elements such as Manganese, Silicon, Phosphorus, and Sulfur. This alloy is known for its superior resistance to pitting and crevice corrosion. The tubing boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of roughly 35%. Its enhanced mechanical properties and corrosion resistance make it an excellent choice for demanding chemical environments. Additionally, the alloy offers good weldability and formability, making it suitable for both structural and pressure-related applications.
| Tube Standard | ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554 |
| Tube Dimension | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Seamless Tube Sizes | 1 / 2″ NB – 16″ NB |
| Welded Tube Sizes | 1 / 2″ NB – 24″ NB |
| Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Tube Manufacturing Process | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Stainless Steel Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Tube Length | Single Random, Double Random, Standard & Cut length |
| Tube End Types | Plain Ends (PE), Threaded Ends (TE), Bevelled Ends (BW), Grooved Mechanical Joints or Grooved Ends, TBE (Treaded Both Ends) |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 317 | min. | – | – | – | – | – | 18.0 | 3.0-4.0 | 11.0 | – |
| max. | 0.08 | 2.0 | 1.0 | 0.040 | 0.030 | 20.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 317 | 515 | 205 | 35 | 75 | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 317 Tubing from Ojas Pipes and Tubes ensures high quality and durability, as these tubing offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Ojas Pipes and Tubes, one of the largest suppliers of Stainless Steel 317 Tubing in Kolkata, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Dimensions | Wall | Weight per | Dimensions | Wall | Weight per | |
|---|---|---|---|---|---|---|
| (mm) | (mm) | metre (kg) | (mm) | (mm) | metre (kg) | |
| 12.7 x 12.7 | 1.20 | 0.44 | 40 x40 | 1.20 | 1.49 | |
| 12.7 x 12.7 | 1.50 | 0.55 | 40 x40 | 1.50 | 1.85 | |
| 15 x 15 | 1.20 | 0.53 | 40 x40 | 2.00 | 2.45 | |
| 15 x 15 | 1.50 | 0.65 | 40 x40 | 3.00 | 3.75 | |
| 20 x 20 | 1.20 | 0.71 | 50 x50 | 1.50 | 2.32 | |
| 20 x 20 | 1.50 | 0.88 | 50 x50 | 2.00 | 3.08 | |
| 20 x 20 | 2.00 | 1.19 | 50 x50 | 3.00 | 4.65 | |
| 25 x 25 | 1.20 | 0.92 | 60 x60 | 2.00 | 3.71 | |
| 25 x 25 | 1.50 | 1.14 | 60 x60 | 3.00 | 5.49 | |
| 25 x 25 | 2.00 | 1.49 | 70 x70 | 3.00 | 6.53 | |
| 25 x 25 | 3.00 | 2.20 | 80 x80 | 2.00 | 4.98 | |
| 30 x 30 | 1.20 | 1.10 | 80 x80 | 3.00 | 7.53 | |
| 30 x 30 | 1.50 | 1.37 | 100 x 100 | 2.00 | 6.40 | |
| 30 x 30 | 2.00 | 1.84 | 100 x 100 | 3.00 | 9.53 | |
| 30 x 30 | 3.00 | 2.72 | ||||
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 317 | 8000 | 193 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 740 |
|
OD Size
Inches |
Tolerances, Inches |
||
|
OD,
Inches |
Wall |
Cut
Length (a), In. |
|
|
Less than 1 |
±0.004 |
All Sizes
± 10% |
+1/8–0 |
|
1 to 1-1/2 |
±0.006 |
||
|
Over 1-1/2 to 2 |
±0.008 |
||
|
Over 2 to 2-1/2 |
±0.010 |
+3/16–0 |
|
|
Over 2-1/2 to 3 |
±0.012 |
||
|
Over 3 to 4 |
±0.015 |
||
|
Over 4 to 5 |
+0.015
– 0.025 |
||
Yes, we offer custom sizes for Stainless Steel 317 Tubing to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
Stainless Steel 317 Tubing finds extensive use in environments that are highly corrosive and chemical-intensive. It’s particularly well-suited for applications in chemical and petrochemical processing, pulp and paper manufacturing, textile equipment, food and beverage processing, and marine industries. Its ability to resist sulfuric acid, acetic acid, and chloride-induced corrosion makes it a trusted option for heat exchangers, evaporators, process piping, and condensers. Moreover, SS 317 tubing is also utilized in pharmaceutical production and pollution control equipment, ensuring reliability across various sectors.
