Stainless Steel 316 and 316L EFW Pipes Manufacturer, Supplier and Exporter in Kolkata, India

Ojas Pipes and Tubes, a company headquartered in Kolkata, India, is a reliable manufacturer and supplier of high-strength Stainless Steel 316 and 316L EFW (Electric Fusion Welded) Pipes. With a reputation for high-precision engineering and excellent strength, Ojas maintains the highest level of quality control to ensure that all pipes adhere to high industry standards of performance and reliability. Equipped with sophisticated manufacturing processes and a reliable supply chain, the company supplies varied industrial requirements domestically and abroad. Their Stainless Steel 316 and 316L EFW Pipes are well renowned for high corrosion resistance, good weldability, and extended service life, which has made Ojas Pipes and Tubes a popular choice in numerous industries.

Stainless Steel 316 EFW Pipes Supplier in Kolkata, SS 316L EFW Pipes Exporter in India, SS 316L EFW Pipe Manufacturer in Kolkata, 316 Stainless Steel EFW Pipe Price List in Kolkata, Stainless Steel 316L EFW Pipes Supplier in Kolkata, 316 High Temperature Stainless Steel EFW Pipes in India,1.4401 EFW Pipes Supplier in Kolkata

Stainless Steel 316 and 316L EFW Pipes consist mainly of iron, with 16-18% chromium, 10-14% nickel, and 2-3% molybdenum for higher corrosion resistance and strength. The “L” type contains less carbon (less than 0.03%), better weldability, and lower carbide precipitation. Mechanically, they provide superior tensile strength of approximately 515 MPa, yield strength of around 205 MPa, and elongation of close to 40%, offering good ductility as well as toughness. Their high resistance to chloride-induced pitting and crevice corrosion makes them suitable for hostile environments, ensuring reliability and durability in critical use.

Stainless Steel 316 and 316L EFW Pipes Specification

Specification	ASTM A358 / ASME SA358
Specification	A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5
Grades	304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC.
Type	EFW, ELECTRIC FUSION WELDED
Outer Diameter Size	Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size)
Wall Thickness	Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness)
Length	01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size.
Ends	Plain Ends / Beveled Ends
Delivery Conditions	As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered
Coating	Electropolish, Mechanical Polish, Satin Finish, Passivated
Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Equivalent Grades for Stainless Steel 316 and 316L EFW Pipes

STANDARD	WERKSTOFF NR.	UNS	BS	JIS	GOST	AFNOR	EN
SS 316	1.4401	S31600	316S31 / 316S33	SUS 316	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404	S31603	316S11 / 316S13	SUS 316L	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

316 and 316L Stainless Steel EFW Pipes Chemical Composition

Grade		C	Mn	S	Cr	Mo	Si	P	Ni	N
316	min.	–	–	–	16.0	2.00	–	–	10.0	–
316	max.	0.08	2.00	0.03	18.0	3.00	0.75	0.045	14.0	0.10
316L	min.	–	–	–	16.0	2.00	–	–	10.0	–
316L	max.	0.08	2.00	0.03	18.0	3.00	0.75	0.045	14.0	0.10

SS 316 and 316L EFW Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Yield Strength 0.2% Proof (MPa) min	Hardness
Grade	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Yield Strength 0.2% Proof (MPa) min	Rockwell B (HR B) max	Brinell (HB) max
316	515	40%	205	95	217
316L	485	40%	170	95	217

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

SUS 316L EFW Pipes Kolkata, 316 Stainless Steel EFW Pipe Supplier in India, ASTM A358 TP316 EFW Stainless Pipe Manufacturer in Kolkata, TP 316L SS EFW Pipe Exporter in India, Stainless Steel 1.4404 EFW Pipes Dealer in Kolkata, SS 316L EFW Pipe Supplier in Kolkata

Why Choose Stainless Steel 316 and 316L EFW pipes from Ojas Pipes and Tubes?

Choosing Stainless Steel 316 and 316L EFW Pipes from Ojas Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 316 and 316L EFW pipes Supplier in Kolkata, India

Ojas Pipes and Tubes, a leading manufacturer and supplier of Stainless Steel 316 and 316L EFW Pipes in Kolkata, India, offers a comprehensive range of high-quality pipes and tubing suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us a trusted choice for regional products.

TP 316L SS EFW Pipe Supplier in Kolkata, 316 Austenitic Stainless Steel EFW Pipes Exporter in Kolkata, EFW Pipe Stainless Steel UNS S31600 Manufacturer in Kolkata, Stainless Steel 316 EFW Pipes Supplier in Kolkata, SS 316L schedule 10 EFW Pipe Exporter in India

316 and 316L Stainless Steel EFW Pipe Sizes

NPS Designator	Outside Diameter		Nominal Wall Thickness
	in.	mm	Schedule 5SA		Schedule 10SA		Schedule 40SA		Schedule 80SA
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
8	8.625	219.08	0.109	2.77	0.148	3.76	0.322	8.18	0.500	12.70
10	10.750	273.05	0.134	3.40	0.165	4.19	0.365	9.27	0.500B	12.70B
12	12.750	323.85	0.156	3.96	0.180	4.57	0.375B	9.52B	0.500B	12.70B
14	14.000	355.60	0.156	3.96	0.188B	4.78B	…	…	…	…
16	16.000	406.40	0.165	4.19	0.188B	4.78B	…	…	…	…
18	18.000	457.20	0.165	4.19	0.188B	4.78B	…	…	…	…
20	20.000	508.00	0.188	4.78	0.188B	4.78B	…	…	…	…
22	22.000	558.80	0.188	4.78	0.218B	5.54B	…	…	…	…
24	24.000	609.60	0.218	5.54	0.250	6.35	…	…	…	…
30	30.000	762.00	0.250	6.35	0.312	7.92	…	…	…

Yield Strength of SS 316 and 316L EFW Pipes

SS Pipes Grade	Tensile Strength, N/mm2 (min)	Yield Strength, N/mm2 (min)	Elongation, % (min)
316	515	205	35
316L	485	170	35

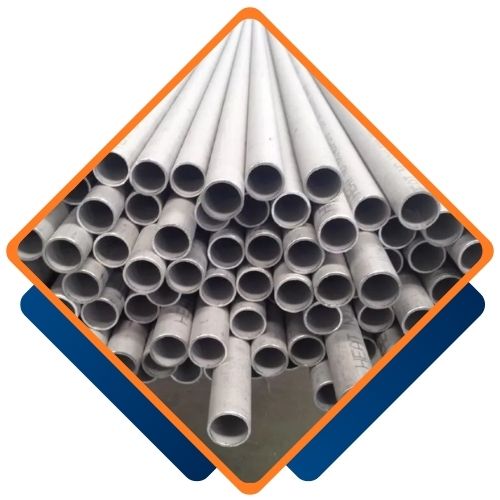

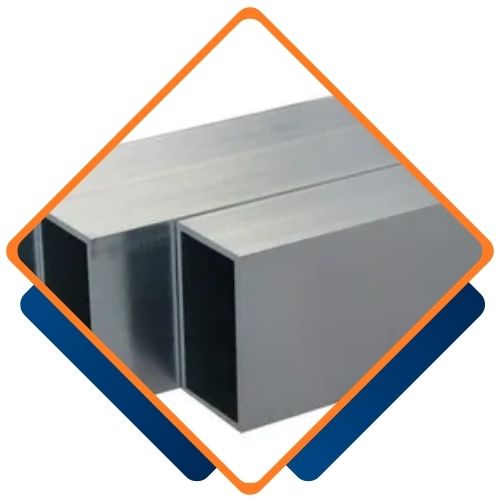

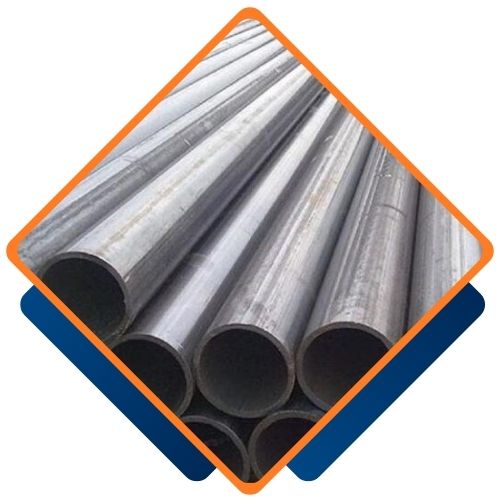

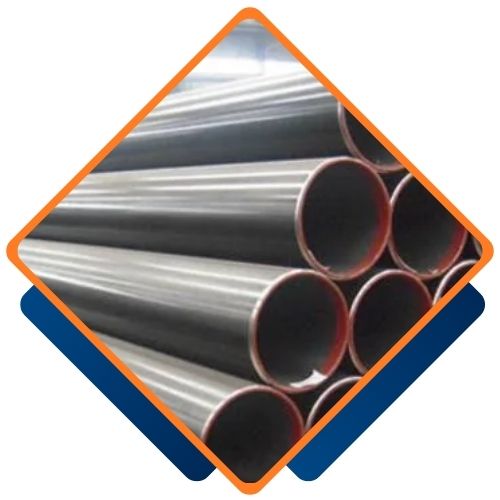

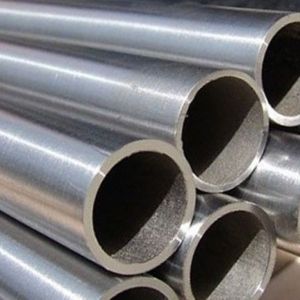

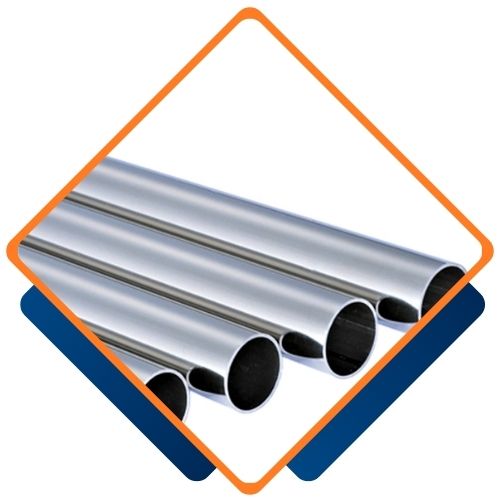

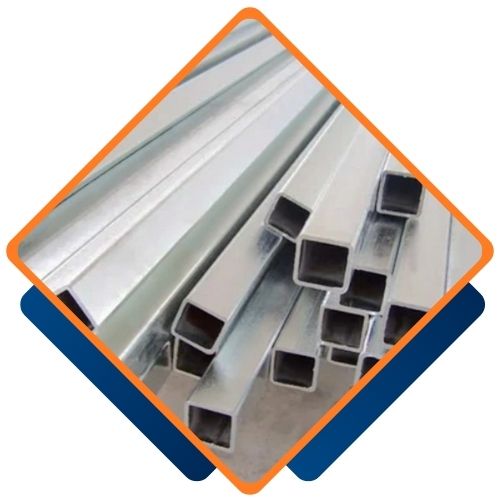

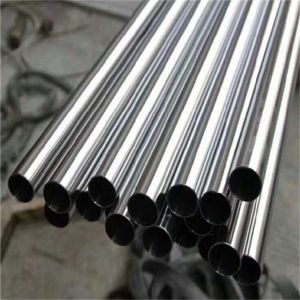

Types of Stainless Steel 316 and 316L EFW Pipes

Are Custom Sizes Available for Stainless Steel 316 and 316L EFW Pipes?

We offer custom sizes for Stainless Steel 316 and 316L EFW Pipes to meet your specific needs. Our dedicated team at Ojas Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@ojaspipesandtubes.co.in.

EFW SS 316 Pipes Exporter in India, SS UNS S31600 EFW Pipe Price List in Kolkata, SS 316L EFW Pipe Supplier in India, 316 SS EFW Pipes Exporter in Kolkata, Stainless Steel 1.4404 EFW Pipes Exporter in Kolkata, SUS 316L EFW Pipes Price in India, 316 Stainless Steel EFW Pipes Weight Chart, Stainless Steel 316 EFW Pipes Thickness, SS S31603 EFW Pipes Supplier in Kolkata

Stainless Steel 316 and 316L EFW Pipes are used heavily in the chemical process, pharmaceutical, food process industries, marine, and petrochemical sectors for their excellent corrosion properties and toughness. Their high-temperature resistance and tolerance of aggressive chemicals also make them suitable for conveying fluids and gases under corrosive environments. Moreover, pipes are also used in power plants, desalination, and sewage treatment plants. The 316L grade is used where the above higher weldability and intergranular corrosion resistance are needed, for instance, in surgical hardware and in architecture, for structural integrity and longevity.
