Home > Stainless Steel > Stainless steel 310H Welded Tubing
Ojas Pipes and Tubes is a well-established manufacturer and supplier of high-quality Stainless Steel 310H Welded Tubing from Kolkata, India. Internationally acclaimed for precise engineering and reliability, Ojas provides tubing solutions that match the stringent requirements of industrial uses. With its unyielding focus on quality, timely delivery, and customer satisfaction, Ojas caters to various industries such as petrochemicals, power generation, and heat treatment. The Stainless Steel 310H Welded Tubing of the company can operate at high temperatures and corrosive conditions and is suitable for clients looking for performance and durability in harsh service conditions.
Stainless Steel 310H Welded Tubing is a high-carbon variant of stainless steel 310, which is used for high-temperature applications. It has a composition of about 25% chromium and 20% nickel, which provides it with better resistance to oxidation. Carbon is around 0.04–0.10%, increasing the strength at high temperatures. The tubing provides tensile strength of 515 MPa (min), yield strength of 205 MPa (min), and elongation of 40%. It shows superior toughness and creep resistance, even under temperatures of up to 1100°C (2012°F). The properties make it ideal for severe high-temperature and high-stress applications.
| 310H Stainless Steel Tube Finish | Polished, BA (Bright & Annealed),AP (Annealed & Pickled), MF |
|---|---|
| Stainless Steel 310H Tube Standards | ASTM A213,ASTM A269, ASTM A249,ASME SA213,ASME SA269, ASME SA249, NACE MR0175/ISO 15156, PED 97/23/EC,EN 10216-5 TC1 / TC2, AD 2000 |
| Stainless Steel 310H Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| 310H stainless steel tubing End | Plain End, Beveled End, Treaded, Ends are suitable for orbital welding |
| Marking | All 310H Stainless Steel tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Stainless Steel 310H Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Stainless Steel 310H tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |

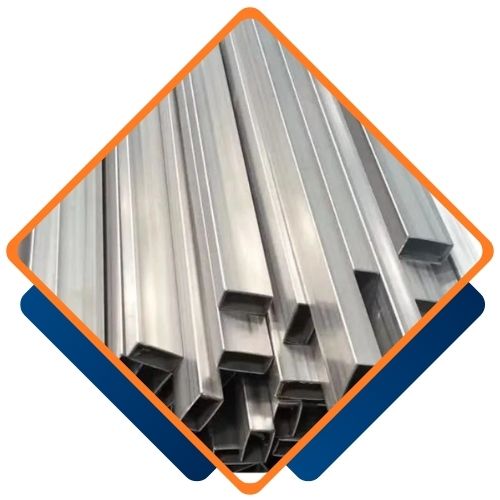

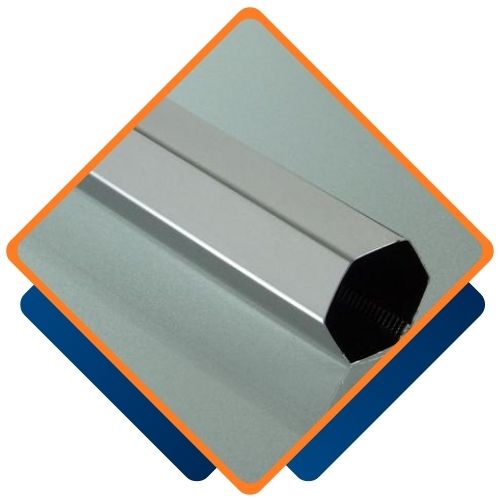

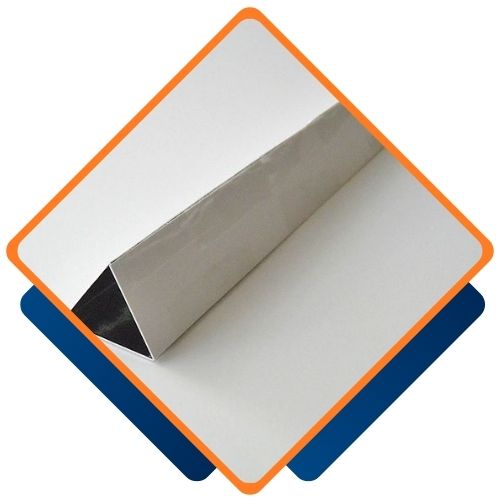

| Stainless Steel 310H tube Form | Straight or ‘U’ bent Tubes, Round,Boiler, Coil , LSAW Tubes, Square, Hydraulic, Rectangular, Hollow Etc. |
| Stainless Steel 310H Tube Type | EFW, Seamless , Fabricated, ERW, Welded |
| SS 310H tube Length | Single Random , Standard & Cut length , Double Random |
| Non-Electropolished | (CFOS) Cleaned for Oxygen Grade Service or Corrosive Systems, (BA) Bright Annealed or (AP) Annealed & Pickled for High-Purity |
| I.D. Surface Finish Options | 5, 7 & 10 µin. Ra |
| 310H stainless steel tubing Testing & Inspection | Visual inspection • Surface roughness measurement • Helium-leak testing • Scanning Electron Microscopy (SEM) • Auger Electron Microscopy (AES) • Election Spectroscopy for Chemical Analysis (ESCA or XPS) • Particle testing • Moisture testing |
| Tolerances | In accordance with: ASTM: A269 & A632, JIS: G 3459 |
| 310H stainless steel tubing Test Certificate | Laboratory Test Certificate from Govt. Approved Lab. Manufacturer Test Certificate according to EN 10204 3.1 B Under Third Party Inspection |
| Electropolished | (EP) Electropolished for Ultra High Purity Systems |
| 310H stainless steel tubingApplication | Oil Tube , Boiler and Heatexchange , Gas Tube, Fluid Tuber |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.0 | 0.045 | 0.030 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 310H Welded Tubing from Ojas Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Ojas Pipes and Tubes is the largest supplier of Stainless Steel 310H Welded Tubing in Kolkata, India. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | X5CrNi18-10 | 2332 | SUS 310H | ||
Yes, Ojas Pipes and Tubes offer large custom designs for Stainless Steel 310H Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@ojaspipesandtubes.co.in.

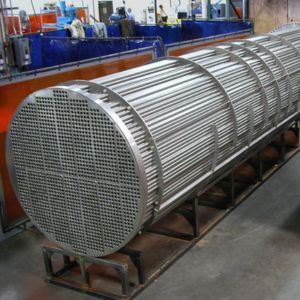

Stainless Steel 310H Welded Tubing is applied extensively where there is a need for high-temperature and corrosion resistance. The general industries include petrochemical processing, power plants, heat exchanger, furnaces, kilns, and refineries. It is best suited for boiler tubes, radiant tubes, and exhaust systems, where there is elevated temperature and oxidative atmosphere. Its high-temperature strength makes it applicable to structural parts in high-heat areas. In addition, the tubing is used in cryogenic plants and thermal processing systems, as it can withstand the stability and thermal fatigue resistance required. Its versatility guarantees consistent performance in a wide range of stressful conditions.
