Home > Stainless Steel >Stainless Steel 304H EFW pipes

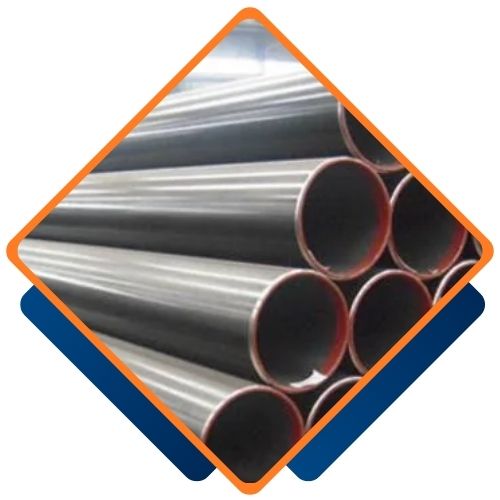

Ojas Pipes and Tubes, a well-respected manufacturer and supplier located in Kolkata, India, is known for providing top-notch Stainless Steel 304H EFW (Electric Fusion Welded) Pipes designed for high-temperature and high-pressure applications. With a focus on quality and timely delivery, Ojas caters to a variety of industries, including petrochemicals, power generation, and chemical processing. Stainless Steel 304H, a high-carbon variant of 304, boasts improved strength and creep resistance at elevated temperatures. Equipped with cutting-edge production facilities and a commitment to international standards, Ojas Pipes and Tubes stands out as a dependable source for durable, high-performance stainless steel piping solutions.
Stainless Steel 304H EFW Pipes are composed of 18–20% Chromium, 8–11% Nickel, and a higher carbon content of 0.04–0.10%, which enhances their strength at high temperatures. They also contain Manganese, Silicon, Phosphorus, and Sulfur, with Iron as the primary element. These pipes are known for their excellent resistance to oxidation and corrosion, as well as their mechanical durability. Typical characteristics include a tensile strength of about 585 MPa, yield strength of 240 MPa, and an elongation of roughly 40%. The increased carbon content improves creep resistance, making 304H an ideal choice for pressure vessels and structural components in high-heat settings.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 304H | S30409 | 1.4948 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 304H | 515 | 205 | 40 | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304H EFW Pipes from Ojas Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304H | 8000 | 500 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 720 |
We offer custom sizes for Stainless Steel 304H EFW Pipes to meet your specific needs. Our dedicated team at Ojas Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@ojaspipesandtubes.co.in.
Stainless Steel 304H EFW Pipes find extensive use in applications that require high strength and the ability to withstand elevated temperatures. They are frequently utilized in heat exchangers, boilers, superheaters, and pressure vessels in power plants, refineries, and the petrochemical sector. Their superior creep and oxidation resistance make them perfect for high-temperature operations in industrial furnaces, reactors, and exhaust systems. Additionally, they are employed in constructing structural supports, pipelines for transporting hot gases or fluids, and steam distribution systems.
