Home > Stainless Steel > Stainless steel 304 Welded Tubing
Ojas Pipes and Tubes, Kolkata, India, is a well-known Stainless Steel 304L Welded Tubing manufacturer and supplier. Committed to quality, precision, and customer delight, Ojas provides high-quality tubing solutions for industrial and commercial applications. Our 304L welded tubes are manufactured on the latest machinery and are thoroughly quality-checked to provide corrosion resistance and longevity. Supported by an experienced team and a long history of service, Ojas Pipes and Tubes supplies a broad spectrum of industries such as chemical processing, food and beverage, oil and gas, and pharmaceuticals throughout India and worldwide.
Stainless Steel 304L Welded Tubing is an austenitic, low-carbon stainless steel that possesses superior corrosion resistance and weldability. Its chemical makeup is generally composed of: Chromium (18–20%), Nickel (8–12%), Carbon (≤ 0.03%), Manganese (≤ 2%), Silicon (≤ 1%), Phosphorus (≤ 0.045%), and Sulfur (≤ 0.03%). Its mechanical properties are tensile strength of 485 MPa (min), yield strength of 170 MPa (min), and elongation of 35% (min). It has strength and toughness even at cryogenic temperatures, hence a good option for many challenging environments.
| Tube Range | 1/2″ OD – 12″ OD, Guage: 25 SWG – 10 SWG |
| Outer Diameter | 3.00 mm – 219.10 mm |
| Wall Thickness | 0.40 mm – 12.70 mm |
| Schedules | 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Length | Upto 30 meters, Custom Cut Lengths |
| Specifications | ASTM A213 / ASTM SA213 |

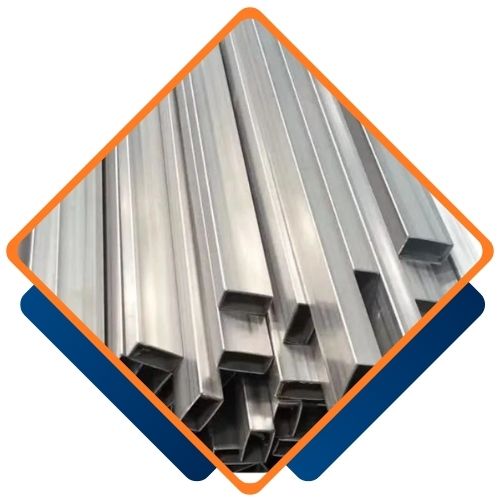

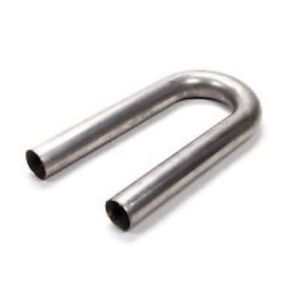

| Types | Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes |
| SS | 304 |
|---|---|
| Ni | 8 – 11 |
| Fe | Balance |
| Cr | 18 – 20 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.040 max |
| S | 0.030 max |
| Grade | 304 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 92 |
| Brinell (HB) max | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 304 Welded Tubing from Ojas Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Ojas Pipes and Tubes is the largest supplier of Stainless Steel 304 Welded Tubing in Kolkata, India. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Yes, Ojas Pipes and Tubes offer large custom designs for Stainless Steel 304 Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@ojaspipesandtubes.co.in.

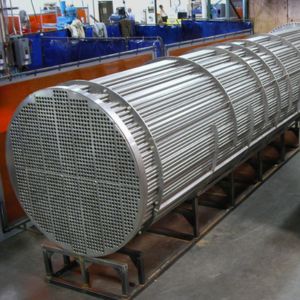

Stainless Steel 304L Welded Tubing is extensively utilized in a variety of industries because of its corrosion resistance, formability, and strength. Typical uses are in heat exchangers, condensers, fluid transport lines, and structural items in petrochemical and chemical plants. It is also used in food processing equipment, dairy and beverage sectors, and pharmaceutical production because of its sanitary properties. In building, it is a sturdy and attractive choice for architectural elements. 304L welded tubing is also appropriate for marine environments and water treatment plants where repeated exposure to water and corrosive agents occurs.
