Home > Stainless Steel >Stainless Steel 304 EFW pipes

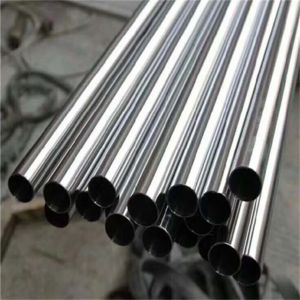

Ojas Pipes and Tubes, a reputable manufacturer and supplier located in Kolkata, India, focuses on producing top-notch Stainless Steel 304 EFW (Electric Fusion Welded) Pipes suitable for a variety of industrial uses. Known for their strength, resistance to corrosion, and meticulous engineering, these pipes are perfect for transporting fluids, structural applications, and processing tasks. Ojas employs cutting-edge manufacturing methods and adheres to strict quality standards to provide dependable and cost-effective piping solutions. Catering to industries like construction, chemical processing, water treatment, and food & beverage, Ojas Pipes and Tubes has built a solid reputation for excellence and timely delivery both locally and internationally.
Stainless Steel 304 EFW Pipes consist of 18–20% Chromium, 8–10.5% Nickel, and a maximum carbon content of 0.08%. This alloy also includes trace amounts of Manganese, Silicon, Phosphorus, Sulfur, and Iron as the primary element. These pipes are known for their outstanding corrosion resistance, particularly in oxidizing environments. Their mechanical properties feature a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of about 40%. SS 304 is recognized for its good weldability, formability, and strength, making it a versatile option for both structural and fluid handling needs.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 304 | min. | – | 8.0 | – | – | – | – | – | 18.0 | – |
| max. | 0.08 | 10.5 | 0.75 | 0.10 | 0.030 | 2.0 | 0.045 | 20.0 | ||
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 304 | 515 | 40 | 205 | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304 EFW Pipes from Ojas Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304 | 8000 | 500 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 720 |
We offer custom sizes for Stainless Steel 304 EFW Pipes to meet your specific needs. Our dedicated team at Ojas Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@ojaspipesandtubes.co.in.
Stainless Steel 304 EFW Pipes are extensively utilized in industries that demand robust, corrosion-resistant materials for structural and fluid transport purposes. You’ll often find them in food processing, dairy and beverage production, chemical processing, and pharmaceutical sectors due to their hygienic and non-reactive properties. These pipes are also employed in architectural frameworks, water treatment systems, and exhaust or ventilation ducts. Their ability to resist oxidation and general corrosion makes them suitable for both indoor and outdoor applications. Furthermore, SS 304 EFW pipes are favored in marine and oil industries for their durability and reliability.
