Home > Stainless Steel Tubing > Stainless Steel 202 Tubing
Ojas Pipes and Tubes, a well-respected name in Kolkata, India, stands out as a leading manufacturer and supplier of Stainless Steel 202 Tubing. We take pride in providing high-quality, durable tubing solutions that serve a variety of industries, including construction, automotive, railways, and furniture. Our SS 202 tubing is crafted using cutting-edge techniques and top-notch raw materials, ensuring excellent formability, weldability, and corrosion resistance. With a strong emphasis on precision and strength, Ojas delivers tubing that meets international standards and can be customized to your specifications. Our dedication to timely delivery and customer satisfaction makes us a trusted partner for all your stainless steel tubing requirements.
Stainless Steel 202 Tubing is an austenitic stainless steel that contains chromium, nickel, and manganese. Its typical chemical makeup features Chromium (17–19%), Nickel (4–6%), Manganese (7.5–10%), along with trace amounts of Carbon, Silicon, and Nitrogen. This blend provides moderate corrosion resistance and solid mechanical properties. It boasts a tensile strength of about 515 MPa, a yield strength of roughly 275 MPa, and an elongation of 40% over 50mm. The tubing also shows good toughness at lower temperatures and excellent weldability, making it ideal for various industrial forming and fabrication applications.
Standard | ASTM, AISI, GB, JIS, customers’ requests available |
Size | Round Tube: OD: 16-119mm or customized |
Thickness | 0.25mm-3.0mm |
Length | 6m or according to customers’ request |
Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
Thickness: ±0.05mm | |
Length: ±0.5mm | |
Ends | In plain end or bevelled ends or as your requirements |
Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
B. Gloss #400,Mirror #600 – #1000 | |
C. Brushed | |
D. Wood Grain | |
E. Embossed, Threaded | |
Application | Decorations, constructions, food industry, etc. |
Certification | ISO, SGS |
Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |

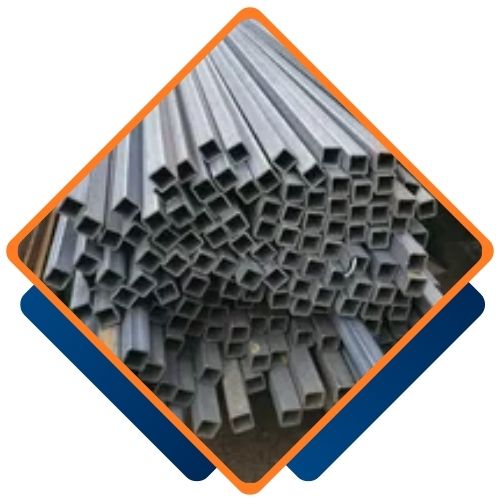

Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
Length | 6m or according to customer’s request |
Outer diameter | 6.35-219mm |
Tolerance | Outer diameter :±0.2mm |
Thickness :±0.02mm | |
Length :±0.5mm | |
Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Stainless Steel 202 Tubing from Ojas Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Ojas Pipes and Tubes, a leading supplier of Stainless Steel 202 Tubing in Kolkata, India, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Ojas Pipes and Tubes, we provide custom sizes of Stainless Steel 202 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Stainless Steel 202 Tubing finds its place in a range of structural applications, including railways, furniture frames, kitchen equipment, and architectural frameworks, thanks to its strength and appealing finish. It’s also a popular choice for making storage racks, exhaust systems, curtain rods, and utensils. This tubing is well-suited for environments with light to moderate corrosion, making it perfect for indoor and semi-outdoor settings. Industries like food processing, automotive, and construction favor SS 202 tubing for its cost-effectiveness, ease of fabrication, and reliability. Its excellent weldability and formability make it a smart alternative to pricier options.
