Home > Nickel Alloy > Nickel Alloy Seamless Pipes
Ojas Pipes and Tubes is one of the prominent manufacturers and suppliers in Kolkata, India, engaged in the production of high-quality Nickel Alloy Seamless Pipes. Highly appreciated for their accuracy engineering and quality orientation, Ojas deals with multiple industrial processes needing durable and high-performance piping solutions. Strict international standards are followed by the company, and an extensive network of distribution enables fast delivery and customer satisfaction. Their Nickel Alloy Seamless Pipes are particularly ideal for high-temperature and high-pressure conditions, making Ojas a go-to partner in domestic and overseas markets for cutting-edge piping and tubing solutions.
Nickel Alloy Seamless Pipes generally have 60–70% nickel content, with chromium, iron, molybdenum, copper, and minute traces of manganese and carbon. Such alloys provide stronger mechanical properties and corrosion resistance, particularly under intense conditions. Tensile strength is between 500 and 800 MPa, and yield strength is around 200 to 400 MPa. Elongation is about 30–40%, leading to high ductility and workability. Stability at high temperatures and stress rupture resistance make them suitable for important operations in severe chemical and thermal conditions.
| ASTM Specification | Astm B829 ASME SB829 |
|---|---|
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| ASTM B829 Nickel Alloy Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| ASTM B725 Nickel Alloy Welded Pipe Size | 5.0 – 1219.2 mm |
| Nickel-Cobalt Alloys EFW Pipe size | 5.0 – 1219.2 mm |
| Swg & Bwg | 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg., |
| Nickel Pipe Schedule | XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160 |
| Nickel pipe Length | Double Random, Single Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |

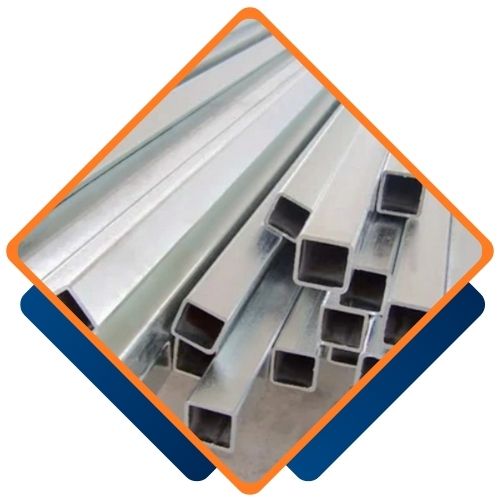

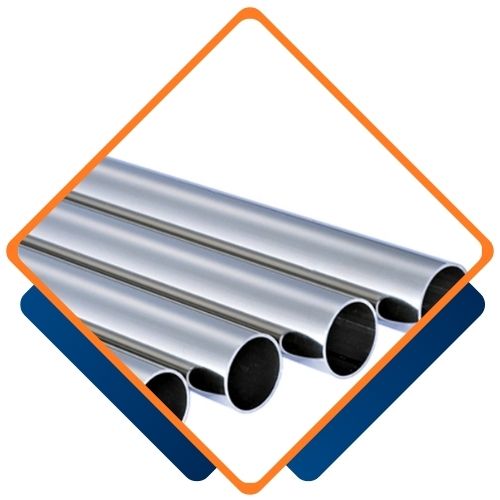

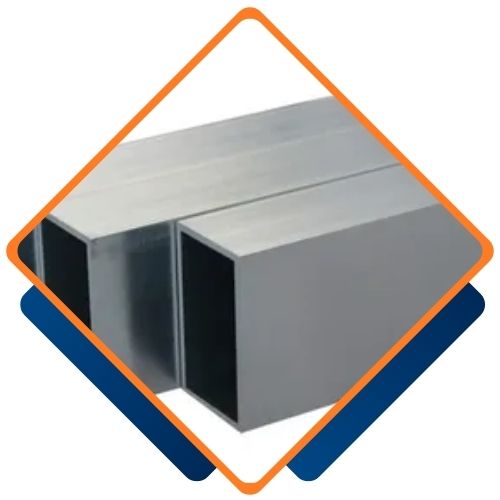

| Form | Nickel are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type of Nickel Alloy Pipe | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Nickel |
| Nickel pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Marking on Nickel Steel Pipe | All Astm B725 Nickel Alloy Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application of Nickel pipe | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | Large Diameter NickelPipe |
| Nickel pipe manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
| Nickel pipe Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, Nickel HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP) |
| Nickel 200 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 Min | 0.15 Max | – | 0.35 Max | 0.1 Max | 0.4 Max | – | 0.01 Max | 0.25 Max | – | |
| Nickel 201 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| Balance | 0.15 Max | – | 0.35 Max | 0.35 Max | 0.40 Max | – | 0.01 Max | 0.25 Max | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 G/Cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Nickel Alloy Seamless Pipes from Ojas Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in nickel alloy products ensures you receive a top-tier solution tailored to your needs.
Ojas Pipes and Tubes, one of the largest suppliers of Nickel Alloy Seamless Pipes in Kolkata, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for nickel alloy products in the region.
Yes, we offer custom sizes for Nickel Alloy Seamless Pipes to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
Nickel Alloy Seamless Pipes are widely utilized in industries where durability and resistance against corrosion, heat, and pressure are needed. They find important applications in chemical processing, refineries for oil and gas, aerospace systems, marine machinery, and power generation. These pipes also find standard use in nuclear power applications and food processing machinery, where material stability under harsh conditions is important. Their potential for conveying corrosive gases and fluids safely and reliably makes them a choice of interest in applications requiring durable mechanical strength, reliability, and sustained performance.
