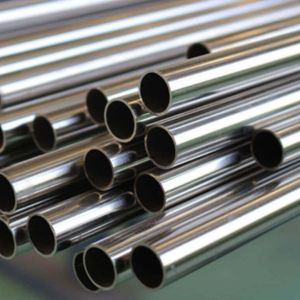

Home > Stainless Steel > Marine Grade Stainless Steel Pipe
Based in Delhi, India, Ojas Pipes and Tubes is a reputable producer and supplier of premium marine-grade stainless steel pipes. Our pipes, which are renowned for their durability and precision engineering, are made especially to resist the severe conditions found in maritime environments. We provide durable and corrosion-resistant stainless steel solutions that meet both national and international standards thanks to our strong dedication to quality and innovation. Customers looking for high-end marine-grade piping solutions in sectors like shipbuilding, offshore oil and gas, desalination plants and other coastal engineering projects choose Ojas Pipes and Tubes.
Iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%) make up the majority of marine grade stainless steel pipes, which are usually made from grades like 316 and 316L. Molybdenum improves corrosion resistance, particularly against saltwater and chlorides. These pipes have good elongation (up to 40%), a yield strength of 205 MPa, and a tensile strength of about 515 MPa. For demanding marine and coastal applications where performance and durability are crucial, they are perfect because they maintain their strength and integrity in the face of high pressure and extreme temperatures.
| Size | 1/8″(10.3mm) to 12″(323.8mm) |
| Grades | TP -304, 316,316L, |
| Schedule | 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10 |
| Marine Grade Stainless Steel Pipe Applications | marine fittings, marine fasteners, and marine structures |
| Finish | Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on. |
| PIPE SIZE | OD IN INCHES | A.S.A. Pipe Schedules | |||||||||||||||
| 5s | 5 | 10s | 10 | 20 | 30 | 40s & Std. | 40 | 60 | 80s & E.H. | 80 | 100 | 120 | 140 | 160 | DBL E.H. | ||
| 1/8 | .405 | .035.1383 | .049.1863 | .049.1863 | .068.2447 | 068.2447 | 0.95.3145 | 0.95.3145 | |||||||||
| 1/4 | .540 | .049.2570 | .065.3297 | .065.3297 | .088.4248 | 088.4248 | .119.5351 | .119.5351 | |||||||||
| 3/8 | .675 | .049.3276 | .065.4235 | .065.4235 | .091.5676 | .091.5676 | .126.7338 | .126.7338 | |||||||||
| 1/2 | .840 | .065.5383 | .065.5383 | .083.6710 | .083.6710 | .109.8510 | .109.8510 | .1471.088 | .1471.088 | .1871.304 | .2941.714 | ||||||
| 3/4 | 1.050 | .065.6838 | .065.6838 | .083.8572 | .083.8572 | .1131.131 | .1131.131 | .1541.474 | .1541.474 | .2181.937 | .3082.441 | ||||||
| 1 | 1.315 | .065.8678 | .065.8678 | .1091.404 | .1091.404 | .1331.679 | .1331.679 | .1792.172 | .1792.172 | .2502.844 | .3583.659 | ||||||
| 1-1/4 | 1.660 | .0651.107 | .0651.107 | .1091.806 | .1091.806 | .1402.273 | .1402.273 | .1912.997 | .1912.997 | .2503.765 | .3825.214 | ||||||
| 1-1/2 | 1.900 | .0651.274 | .0651.274 | .1092.085 | .1092.085 | .1452.718 | .1452.718 | .2003.631 | .2003.631 | .2814.859 | .4006.408 | ||||||
| 2 | 2.375 | .0651.604 | .0651.604 | .1092.638 | .1092.638 | .1543.653 | .1543.653 | .2185.022 | .2185.022 | .3437.444 | .4369.029 | ||||||
| 2-1/2 | 2.875 | .0832.475 | .0832.475 | .1203.531 | .1203.531 | .2035.793 | .2035.793 | .2767.661 | .2767.661 | .37510.01 | .55213.70 | ||||||
| 3 | 3.500 | .0833.029 | .0833.029 | .1204.332 | .1204.332 | .2167.576 | .2167.576 | .30010.25 | .30010.25 | .43714.32 | .60018.58 | ||||||
| 3-1/2 | 4.000 | .0833.472 | .0833.472 | .1204.973 | .1204.973 | .2269.109 | .2269.109 | .31812.51 | .31812.51 | .63622.85 | |||||||
| 4 | 4.500 | .0833.915 | .0833.915 | .1205.613 | .1205.613 | .23710.79 | .23710.79 | .28112.66 | .33714.98 | .33714.98 | .43719.01 | .53122.51 | .67427.54 | ||||
| 4-1/2 | 5.000 | .24712.53 | .35517.61 | .71032.53 | |||||||||||||
| 5 | 5.563 | .1096.349 | .1096.349 | .1347.770 | .1347.770 | .25814.62 | .25814.62 | .37520.78 | .37520.78 | .50027.04 | .62532.96 | .75038.55 | |||||
| 6 | 6.625 | .1097.585 | .1097.585 | .1349.290 | .1349.290 | .28018.97 | .28018.97 | .43228.57 | .43228.57 | .56236.39 | .71845.30 | .86453.16 | |||||
| 7 | 7.625 | .30123.57 | .50038.05 | .87563.08 | |||||||||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Marine Grade Stainless Steel Pipes from Ojas Pipes and Tubes ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
Ojas Pipes and Tubes, one of the largest suppliers of Marine Grade Stainless Steel Pipes in Kolkata, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Marine Grade Stainless Steel Pipe Grades | UNS | Si | Mn | S | C | P | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|
| TP304 | S30400 | 1 | 2 | 0.03 | 0.08 | 0.045 | 18.0-20.0 | 8.0-11.0 | – |
| TP304L | S30403 | 1 | 2 | 0.03 | 0.035 | 0.045 | 18.0-20.0 | 8.0-13.0 | – |
| Material | Tensile Strength | Yield Strength | Heat | Temperure | Elongation %, Min |
|---|---|---|---|---|---|
| Ksi (MPa), Min. | Ksi (MPa), Min. | Treatment | Min. | ||
| º F(º C) | |||||
| Stainless Steel | 75(515) | 30(205) | Solution | 1900 (1040) | 35 |
| Nominal | SS Square Pipe Schedule 5 | SS Square Pipe Schedule 10 | SS Square Pipe Schedule 40 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | MM | Wt./MM | Kg./M | Kg./Ft | Wt./MM | Kg./M | Kg./Ft | Wt./MM | Kg./M | Kg./Ft |
| 1 / 2 | 21 | 1.65 | 0.801 | 0.244 | 2.11 | 0.999 | 0.305 | 2.77 | 1.270 | 0.387 |
| 3 / 4 | 21.30 | 1.65 | 1.020 | 0.311 | 2.11 | 1.280 | 0.390 | 2.87 | 1.680 | 0.512 |
| 1 | 26.70 | 1.65 | 1.290 | 0.393 | 2.77 | 2.090 | 0.637 | 3.38 | 2.500 | 0.762 |
| 1 1 / 4 | 33.40 | 1.65 | 1.650 | 0.503 | 2.77 | 2.690 | 0.820 | 3.56 | 3.380 | 1.030 |
| 1 1 / 2 | 42.20 | 1.65 | 1.900 | 0.579 | 2.77 | 3.110 | 0.948 | 3.68 | 4.050 | 1.230 |
| 2 | 48.30 | 1.65 | 3.340 | 0.728 | 2.77 | 3.920 | 1.200 | – | – | – |
| 2 1 / 2 | 73.00 | 2.11 | 3.690 | 1.130 | 3.05 | 5.260 | 1.600 | – | – | – |
| 3 | 88.90 | 2.11 | 4.510 | 1.380 | 3.05 | 6.450 | 1.970 | – | – | – |
| 3 1 / 2 | 101.60 | 2.11 | 5.190 | 1.580 | 3.05 | 7.400 | 2.260 | – | – | – |
Yes, we offer custom sizes for Marine Grade Stainless Steel Pipes to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
Applications needing high mechanical strength and corrosion resistance frequently use marine grade stainless steel pipes. They are used in shipbuilding, seawater piping, exhaust lines, ballast systems, and structural elements in the maritime sector. These pipes are also perfect for dockside facilities, desalination plants, and offshore oil rigs where there is continuous exposure to humidity and saltwater. Because of their hygienic qualities, they are used in pharmaceutical facilities, food and beverage systems, and chemical processing plants in addition to marine environments. Long-term dependability in challenging environmental circumstances is guaranteed by their resistance to pitting, crevice corrosion, and stress corrosion cracking.
