Home > Incoloy > Incoloy 800/800H/800HT Tubing
Ojas Pipes and Tubes stands out as a top-notch manufacturer and supplier of high-quality Incoloy 800/800H/800HT Tubing right in Kolkata, India. Known for our exceptional product standards and timely deliveries, we focus on providing tubing solutions that cater to critical industrial needs across various sectors. Our Incoloy 800 series tubing boasts impressive strength, corrosion resistance, and thermal stability, making it perfect for high-temperature settings. With cutting-edge manufacturing techniques and rigorous quality control, we ensure that every product meets global standards like ASTM B407/B514. Industries such as power generation, petrochemicals, and heat treatment trust Ojas Pipes and Tubes for performance-driven solutions.
Incoloy 800 series tubing is mainly made up of Nickel (30-35%), Iron (at least 39.5%), and Chromium (19-23%), along with trace amounts of Carbon, Aluminum, and Titanium. The 800H and 800HT versions feature higher carbon content and controlled aluminum-titanium levels to boost high-temperature strength. Typical mechanical properties include a tensile strength of 500 MPa, yield strength of 200 MPa, and an elongation of 30%. These alloys maintain their structural integrity and resist carburization and oxidation at elevated temperatures up to 1100°C, making them perfect for heat-intensive applications.
Specifications ASTM B407, B514, B515 / ASME SB407, SB514, SB515
Dimensions ASTM, ASME and API
Size Range 15″NB – 150″NB
Outer Diameter 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Length Single Random, Double Random & Cut Length

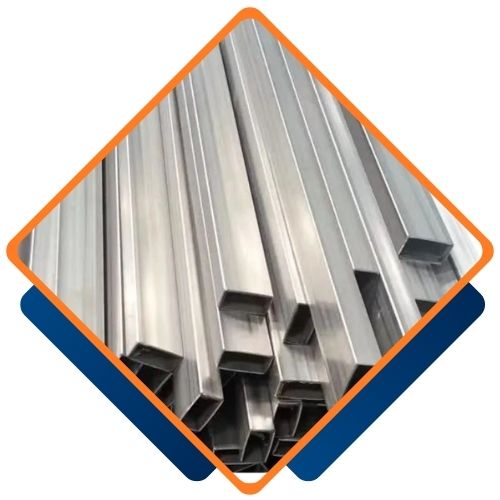

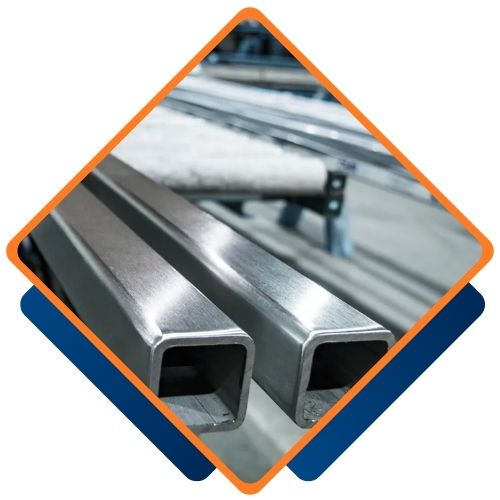

Form Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tube
Grade 800 / 800H / 800HT UNS (N08800, N08810, N08811), DIN (1.4876, 1.4958, 1.4959)
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 | XH32T |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
| Incoloy 800HT | N08811 | 1.4959 | – | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
| Element | Alloy 800 | Alloy 800H | Alloy 800HT |
| C | 0.10 max | 0.05 – 0.10 | 0.06 – 0.10 |
| Mn | 1.50 max | 1.50 max | 1.50 max |
| Si | 1.00 max | 1.00 max | 1.00 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Fe | 39.50 min | 39.50 min | 39.50 min |
| Ni | 30.00 – 35.00 | 30.00 – 35.00 | 30.00 – 35.00 |
| Cr | 19.00 – 23.00 | 19.00 – 23.00 | 19.00 – 23.00 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy 800/800H/800HT Tubes from Ojas Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Ojas Pipes and Tubes, one of the largest suppliers of Incoloy 800/800H/800HT Tubing in the Kolkatas, India. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
| Element | Incoloy Alloy 800/800H/800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
Yes, we provide custom sizes for Incoloy 800/800H/800HT Tubes to meet your specific requirements. At Ojas Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@ojaspipesandtubes.co.in.

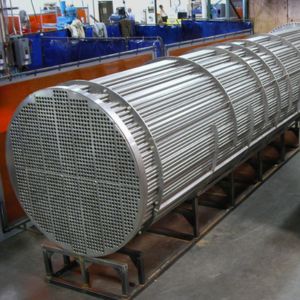

Incoloy 800/800H/800HT Tubing finds its place in high-temperature industrial processes thanks to its remarkable strength and oxidation resistance. You’ll commonly see these tubes in heat exchangers, ethanol cracking furnaces, hydrocarbon processing, and nuclear steam generators. They perform reliably in thermal power plants, petrochemical refineries, chemical processing units, and industrial boilers. Their resistance to carburization, nitridation, and creep makes them ideal for superheater and reheater systems, pressure vessels, and piping for corrosive gases. With unmatched durability in extreme conditions, they are a go-to choice for many industries.
