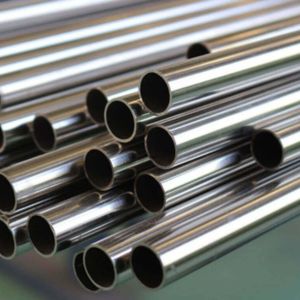

Ojas Pipes and Tubes stands out as a reliable manufacturer and supplier of high-performance Hastelloy C22 Pipes, proudly based in Kolkata, India. These pipes are specifically crafted to thrive in harsh chemical environments, utilizing a corrosion-resistant nickel-chromium-molybdenum alloy—Hastelloy C22—that performs exceptionally well in both oxidizing and reducing conditions. Ojas adheres to strict international standards in manufacturing C22 pipes, ensuring top-notch quality, precise dimensions, and tailored solutions for critical industrial sectors. Industries like chemical processing, pharmaceuticals, marine, and pollution control trust Ojas for robust and leak-proof C22 piping systems. With a strong focus on quality and customer satisfaction, Ojas Pipes and Tubes caters to clients throughout India and beyond.
Hastelloy C22 Pipes are made up of about 56% Nickel, 20–22.5% Chromium, 12.5–14.5% Molybdenum, 2.5–3.5% Iron, and 2–6% Tungsten, along with trace amounts of Cobalt and other stabilizers. This unique blend gives them remarkable resistance to a variety of corrosive chemicals, including powerful oxidizers like nitric acid and ferric/cupric chlorides. C22 pipes boast impressive mechanical strength, with tensile strength ranging from 690–760 MPa, yield strength between 280–350 MPa, and an elongation of around 40%. They maintain their toughness and structural integrity even under high pressure and temperature, ensuring dependable performance in aggressive chemical settings.
| Specifications | ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619 |
| Dimensions | ASME, ASTM, and API |
| Size | 15″NB upto 150″NB IN |
| Specialized in | Sizes in Large Diameter |
| Schedule | Schedule 5, 10, 40, STD, 80, 160 |
| Type | ERW / Seamless / Welded / LSAW Pipes / Fabricated |
| Form | Hydraulic, Round, Etc |
| Length | Double Random, Single Random, & Cut Length. |
| End | Beveled End, Plain End, Treaded |
| Hastelloy C22 | Fe | Ni | P | C | Co | Mo | Si | Mn | S | Cr |
| 4 – 7 | Balance | 0.04 max | 0.01 max | 2.5 max | 15 – 17 | 0.08 max | 1.0 max | 0.03 max | 14.5 – 16.5 |
| Density | Yield Properties (0.2%Offset) | Melting Point | Elongational | Tensile Properties |
| 8.89 g/cm3 | Psi – 52,000 , MPa – 355 | 1370 °C (2500 °F) | 40 % | Psi – 1,15,000 , MPa – 790 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Hastelloy C22 Pipes from Ojas Pipes and Tubes for their exceptional corrosion resistance, high strength, and durability. These pipes are ideal for marine, chemical, and offshore applications, offering long-lasting performance and superior reliability.
Ojas Pipes and Tubes is the largest supplier of Hastelloy C22 Pipes in Kolkata, India, providing top-quality, corrosion-resistant pipes and tubing ideal for marine, industrial, and chemical applications, with reliable delivery and excellent customer service.
| STANDARD | WERKSTOFF NR. | UNS | OR | EN | GOST | JIS |
| Hastelloy C22 | 2.4819 | N10276 | ЭП760 | NiMo16Cr15W | ХН65МВУ | NW 0276 |
Yes, custom sizes are available for Hastelloy C22 Pipes to meet specific project requirements. These pipes can be tailored for various industrial applications. For more details, contact us at sales@ojaspipesandtubes.co.in.
| ASTM B622 Hastelloy C22 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Hastelloy C22 Pipes find their place in challenging environments where resistance to various forms of corrosion is essential. These pipes are perfect for use in chemical reactors, heat exchangers, scrubbers, and pressure vessels within chemical and petrochemical facilities. They are also extensively utilized in pharmaceutical manufacturing, nuclear plants, flue gas scrubbers, and waste treatment facilities, particularly in situations where both oxidizing and reducing agents are present. Their capability to resist localized corrosion and stress corrosion cracking makes them a top choice for demanding applications.
