Home > Duplex Steel > Duplex Steel EFW Pipes

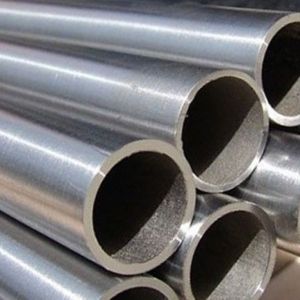

Ojas Pipes and Tubes stands out as a leading manufacturer and supplier of top-quality Duplex Steel EFW Pipes, proudly based in Kolkata, India. These Electric Fusion Welded (EFW) pipes are crafted from premium Duplex stainless steel grades like UNS S32205 and S31803, which are celebrated for their impressive strength and exceptional resistance to corrosion, particularly in harsh, chloride-rich environments. Ojas specializes in delivering precision-engineered EFW pipes that are perfect for large-diameter, high-stress applications across various industries, including oil & gas, desalination, power generation, and marine engineering. Manufactured to meet international standards, Ojas’s Duplex EFW pipes guarantee long-lasting performance, precise dimensions, and operational safety.
Duplex Steel EFW Pipes typically consist of about 22% Chromium, 5–6% Nickel, around 3% Molybdenum, and Nitrogen to enhance resistance against pitting and crevice corrosion. Their unique dual-phase (austenitic-ferritic) microstructure provides a tensile strength of roughly 620 MPa, a yield strength of about 450 MPa, and an elongation of up to 25%. These pipes boast double the strength of austenitic stainless steels while still offering excellent toughness and weldability. The EFW process ensures high-quality welding and fabrication of large-diameter pipes with robust, consistent weld seams, making them ideal for transporting pressurized or corrosive fluids.
| ASTM Specification | ASTM A790 ASME SA790 |
|---|---|
| Applicable Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Size | 4 to 219mm W. T.: 0.5 to 20mm |
| Welded Pipe Size | 5.0 – 1219.2 mm |
| EFW Pipe size | 5.0 – 1219.2 mm |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random, Standard & Cut length Pipe |

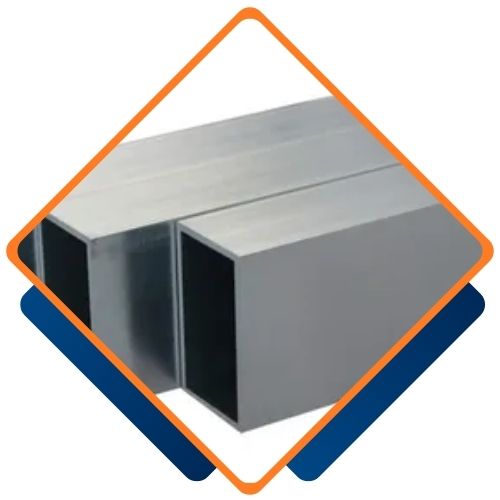

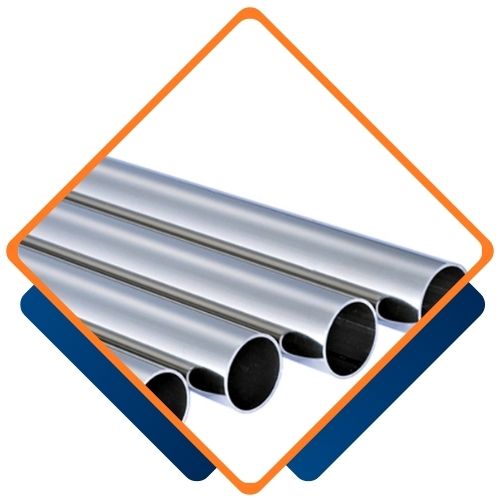

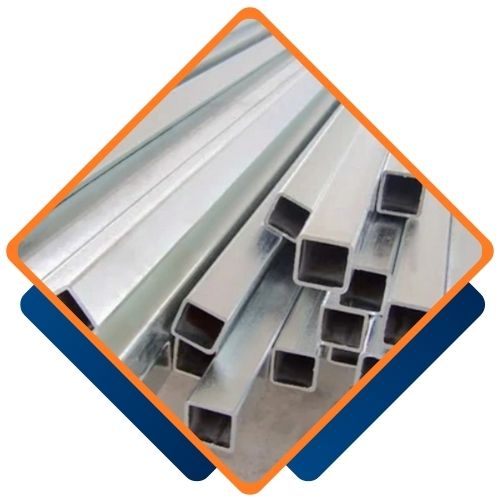

| Form | Duplex 2205 Pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Duplex 2205 Pipe |
| Pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Application | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Duplex Steel | C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Duplex Steel | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Choosing Duplex Steel EFW Pipes from Ojas Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Ojas Pipes and Tubes, one of the largest suppliers of Duplex Steel EFW Pipes in Kolkata, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Duplex Steel EFW Pipes to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
Duplex Steel EFW Pipes find extensive use in oil & gas pipelines, desalination facilities, chemical processing plants, and offshore platforms, where high strength and corrosion resistance are crucial. They are perfect for brine and seawater systems, structural piping, and chemical transport lines that face aggressive conditions. Additionally, these pipes are utilized in power generation, especially in boilers and heat exchangers, as well as in the pulp and paper industry. Thanks to their resistance to chloride stress corrosion and superior weld integrity, Duplex EFW pipes provide reliable performance in demanding environments.
