Home > Copper Nickel > Copper Nickel Seamless Tubing
Ojas Pipes and Tubes stands out as a reliable manufacturer and supplier of top-notch Copper Nickel Seamless Tubing, proudly based in Kolkata, India. These tubes are celebrated for their remarkable resistance to corrosion, particularly in seawater and marine settings. Crafted from high-performance copper-nickel alloys like 90/10 (C70600) and 70/30 (C71500), Ojas ensures that their seamless tubing boasts exceptional dimensional accuracy, a smooth surface finish, and impressive mechanical strength. Complying with international standards such as ASTM B466 and B111, Ojas’s Copper Nickel Seamless Tubes find extensive applications in marine engineering, desalination systems, heat exchangers, condensers, and offshore oil and gas projects.
Copper Nickel Seamless Tubing is mainly made up of Copper (Cu) and Nickel (Ni), with either 10% or 30% Nickel content based on the alloy (90/10 or 70/30). A touch of Iron and Manganese is added to boost corrosion and erosion resistance. These tubes showcase tensile strength between 310 and 500 MPa, yield strength from 105 to 190 MPa, and elongation rates of up to 30–45%. The seamless design guarantees consistent strength and excellent pressure performance. With outstanding resistance to biofouling, pitting, and stress corrosion cracking, Cu-Ni seamless tubes are perfect for critical systems that face saline and corrosive conditions.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Seamless

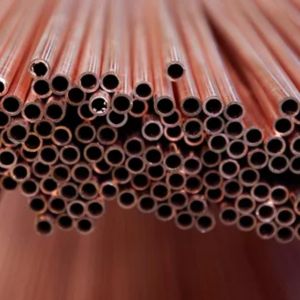

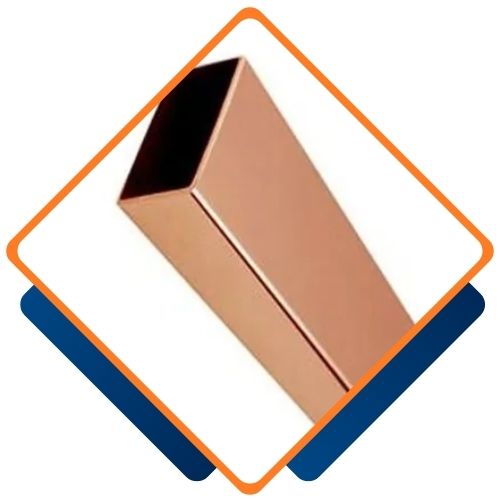

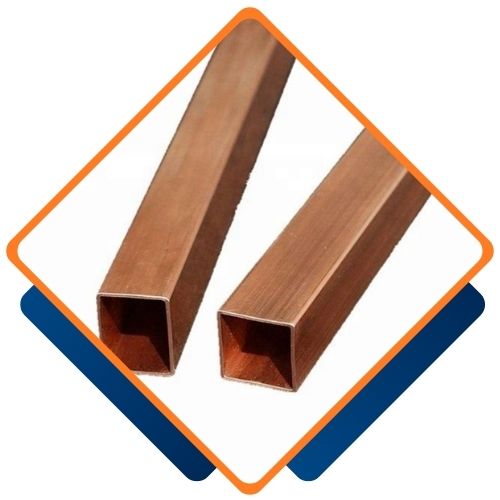

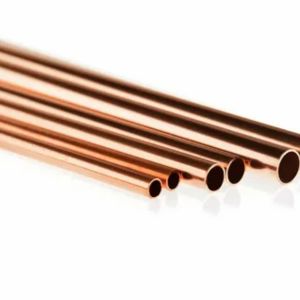

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Seamless Tubing from Ojas Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Seamless Tubing from Ojas Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Seamless Tubing to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
Copper Nickel Seamless Tubing is extensively utilized in marine and naval sectors, including seawater cooling systems, ballast systems, and condenser tubes. Its exceptional resistance to seawater corrosion and biofouling makes it a go-to choice for heat exchangers, desalination plants, and oil refineries. These tubes are also ideal for hydraulic lines, offshore firewater systems, and cooling systems in power plants, where durability and non-reactivity are essential. The tubing’s ability to endure high pressure, temperature, and harsh environments solidifies its status as a preferred option in demanding applications.
