Home > Carbon Steel > Carbon Steel EN10216-2 Pipe

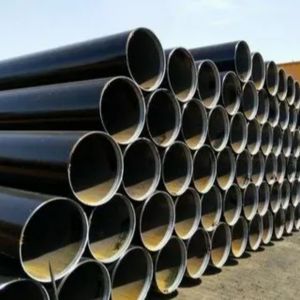

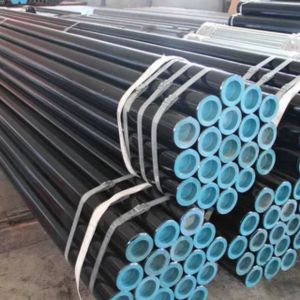

Ojas Pipes and Tubes, an Indian company with headquarters in Kolkata, is a leading producer and supplier of high-quality Carbon Steel EN10216-2 Pipes. Through their precision and resilience, these pipes meet stringent industry standards, providing dependable performance under challenging conditions. Serving diverse industries, Ojas Pipes and Tubes provides products with high pressure and temperature resistance, which are ideal for critical industrial uses. Their commitment to quality, timely delivery, and customer satisfaction has earned them a credible position in the Indian piping sector.
Carbon Steel EN10216-2 Pipes consist primarily of iron with carbon levels ranging from 0.17% to 0.24%, supplemented with manganese, silicon, and minor constituents. The pipes have a tensile strength of approximately 485 MPa and a yield point of approximately 290 MPa. Their chemical composition and heat treatment improve weldability, toughness, and resistance to corrosion, for which they are ideal for high-pressure seamless pipe applications. The pipes have great mechanical properties, such as ductility and strength, which are required for industrial applications.
| Standard | : | EN 102ie-2 |
| EN 10216 Steel Pipe Materials | : | P195GH, P235GH, P265GH |
| EN 10216 Steel Pipe Outside Diameter | : | 10.2mm – 711mm |
| EN 10216 Steel Pipe Wall Thickness | : | 1.6mm – 100mm |
| EN 10216 Steel Pipe Delivery Conditon | : | Normalized |
| EN 10216 MOQ | : | 2 Tons per size |
| EN 10216 Pipe Shippment | : | 20’GP/40’GP/40’HQ FCL or LCL |
| EN 10216 Pipe Delivery | : | Depends on the stock availability and actual order quantities. |
| teel grades | CHEMICAL COMPOSITION (LADLE ANALYSIS) | |||||||||||||
| C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al.cał% min | Cu% max | Nb% max | Ti% max | V% max | Cr+ Cu+ Mo+ Ni% MAX | |
| EN P195GH | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| EN P235GH | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| EN P265GH | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| 16Mo3 | 0,12- 0,20 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30 | 0,25- 0,35 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| 14MoV6-3 | 0,10- 0,15 | 0,15- 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30- 0,60 | 0,50- 0,70 | 0,30 | >\= 0,020 | 0,30 | – | 0,22-0,28 | – | – |
| 13CrMo4-5 | 0,15 | 0,50- 1,00 | 0,30- 0,60 | 0,025 | 0,020 | 1,00- 1,50 | 0,45- 0,65 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| 10CrMo9-10 | 0,10- 0,17 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,70- 1,15 | 0,40- 0,60 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| Mechanical properties | |||||||||||||
| Pipe types | Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | ||||||||||
| Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2 | Upper yield limit or yield strength Re or R0,2 for wall thickness of t min | Tensile strength Rm | Elongation A min% | Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
| T<\=16 | 16<T<\=40 | 40<t<\=60 | 60<T<\=60 | I | T | ||||||||
| MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | ||
| EN P195GH | 195 | – | – | – | 320- 440 | 27 | 25 | – | 40 | 28 | – | 27 | |
| EN P235GH | 235 | 225 | 215 | – | 360- 500 | 25 | 23 | – | 40 | 28 | – | 27 | |
| EN P265GH | 265 | 255 | 245 | – | 410- 570 | 23 | 21 | – | 40 | 28 | – | 27 | |
| 16Mo3 | 280 | 270 | 260 | – | 450- 600 | 22 | 20 | 40 | – | – | 27 | – | |
| 14MoV6-3 | 320 | 320 | 310 | – | 460- 610 | 20 | 18 | 40 | – | – | 27 | – | |
| 13CrMo4-5 | 290 | 290 | 280 | – | 440- 590 | 22 | 20 | 40 | – | – | 27 | – | |
| 10CrMo9-10 | 280 | 280 | 270 | – | 480- 630 | 22 | 20 | 40 | – | – | 27 | – | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel EN10216-2 Pipe from Ojas Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Ojas Pipes and Tubes is one of the largest Carbon Steel EN10216-2 Pipe suppliers in Kolkata, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
Yes, we offer custom sizes for Carbon Steel EN10216-2 Pipe to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
The EN10216-2 Carbon Steel Pipes exported by Ojas Pipes and Tubes are widely utilized in oil and gas, power generation, petrochemical, and engineering industries. They are best suited for the transportation of steam, water, and gases at high temperatures and pressures. They are usually used in heat exchangers, pressure vessels, and boiler and structural parts. They are used in heavy industry applications due to their durability and strength because safety and toughness are priorities there.
