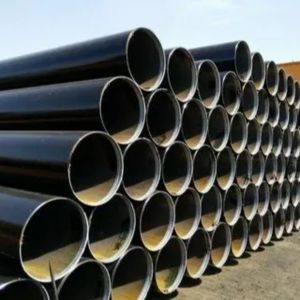

Home > Carbon Steel > Carbon Steel A671 Grade CC70 Pipes
Based in Kolkata, India, Ojas Pipes and Tubes is a top producer and supplier of Carbon Steel A671 GR CC 65 Pipes, providing top-notch welded carbon steel pipes to businesses both domestically and internationally. With a focus on precision engineering, Ojas manufactures A671 GR CC 65 pipes that are exceptionally strong, durable, and tough, meeting ASTM A671 and ASME SA671 standards. These pipes are widely used in the oil and gas, petrochemical, power, and refinery industries and are renowned for their dependability in applications involving temperatures ranging from moderate to high. For important industrial projects, Ojas promises tailored solutions, strict quality control, and on-time delivery.
Many industries that require strong, high-performance piping systems use carbon steel A671 Grade CC70 pipes. They are used in offshore platforms, refinery process units, and transmission pipelines in the oil and gas industry. Because of their resistance to high temperatures and pressures, they are used in boiler systems, steam pipelines, and heat exchangers in power generation facilities. They are used in storage tanks and process piping in the petrochemical sector. They are also utilised in general engineering projects, water treatment facilities, and structural applications. Customised A671 CC70 pipes are provided by Ojas Pipes and Tubes to satisfy a range of industrial needs.
|
Ends |
Plain Ends / Beveled Ends / Coupling |
|
Delivery Conditions |
As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered – BR / N / Q /T |
|
Specification |
ASTM A671 /ASME SA671 |
|
Material Test Certificate |
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
|
Type |
EFW (ELECTRIC FUSION WELDED PIPES) |
| Material | A515 Gr 70 |
|
Outer Diameter Size |
16″ NB To 100″ NB (Nominal Bore Size) |
|
Wall Thickness |
Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
|
Packaging |
Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
|
Class Designation |
CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42 |
|
Length |
5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
|
Other Testing |
NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
|
Dimension |
All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
|
Value Added Services |
Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
|
Coating |
Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
|
Shipment & Transportation |
By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes |
| Standards | CC70, JIS JPI-SB49 |
| Specification | Steel grade | Chemical composition | Remarks | |||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ti | |||
| Pipes for pressure service ASTM A671 CC70 | -/A45 | -/0.17 | – | 0.98 | 0.035 | 0.035 | – | A671/ A672 |
| -/A50 | -/0.22 | – | ||||||
| CA55/A55 | 0.28 | – | ||||||
| -/B55 | -/0.20 | 0.13 ~0.45 | ||||||
| CB60/B60 | 0.24 | |||||||
| CB65/B65 | 0.28 | |||||||
| CB70/C70 | 0.31 | 1.30 | ||||||
| -/C55 | -/0.18 | 0.55 ~0.98 | ||||||
| CC60/C60 | 0.21 | |||||||
| CC65/C65 | 0.24 | 0.79 ~1.30 | ||||||
| CC70/C70 | 0.27 | |||||||
| Products | Steel Grade | BASE METAL MECHANICAL COMPOSITION | Welding point tensile strength (N/mm2) | Remarks | |||
|---|---|---|---|---|---|---|---|
| Yield point (N/mm2) | Tensile Stregth (N/mm2) | Test Pieces | Elongation (%) | ||||
| Pipes for pressure service ASTM A671 CC70 | -/A45 | -/165 | -/310~450 | – | -/30 | -/310~450 | A671/ A672 |
| -/A50 | -/185 | -/345~485 | -/28 | -/345~485 | |||
| CA55/A55 | 205 | 380~515 | 27 | 380~515 | |||
| -/B55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
| CB60/B60 | 220 | 415~550 | 25 | 415~550 | |||
| CB65/B65 | 240 | 450~585 | 23 | 450~585 | |||
| CB70/B70 | 260 | 485~620 | 21 | 485~620 | |||
| -/C55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
| CC60/C60 | 220 | 415~550 | 25 | 415~550 | |||
| CC65/C65 | 240 | 450~585 | 23 | 450~585 | |||
| CC70/C70 | 260 | 485~620 | 21 | 485~620 | |||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel A671 Grade CC70 Pipes from Ojas Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
| NB | Size | OD | 40S | 5S | 10S | S10 | S20 | S40 | S60 | XS/80S | S80 | S100 | S120 | S140 | S160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 1/8” | 10.29 | 1.2 | 1.73 | 2.41 | ||||||||||||
| 1/4” | 13.72 | 1.7 | 2.24 | 3.02 | ||||||||||||
| 3/8” | 17.15 | 1.7 | 2.31 | 3.2 | ||||||||||||
| 15 | 1/2” | 21.34 | 2.8 | 1.7 | 2.1 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | ||||||
| 20 | 3/4” | 26.67 | 2.9 | 1.7 | 2.1 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | ||||||
| 25 | 1” | 33.4 | 3.4 | 1.7 | 2.8 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | ||||||
| 32 | 1 1/4” | 42.16 | 3.6 | 1.7 | 2.8 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | ||||||
| 40 | 1 1/2” | 48.26 | 3.7 | 1.7 | 2.8 | 3.68 | 5.08 | 5.08 | 7.14 | 10.2 | ||||||
| 50 | 2” | 60.33 | 3.9 | 1.7 | 2.8 | 3.91 | 5.54 | 5.54 | 9.74 | 11.1 | ||||||
| 65 | 2 1/2” | 73.03 | 5.2 | 2.1 | 3.1 | 5.16 | 7.01 | 7.01 | 9.53 | 14 | ||||||
| 80 | 3” | 88.9 | 5.5 | 2.1 | 3.1 | 5.49 | 7.62 | 7.62 | 11.1 | 15.2 | ||||||
| 90 | 3 1/2” | 101.6 | 5.7 | 2.1 | 3.1 | 5.74 | 8.08 | 8.08 | ||||||||
| 100 | 4” | 114.3 | 6 | 2.1 | 3.1 | 6.02 | 8.56 | 8.56 | 11.1 | 13.5 | 17.1 | |||||
| 125 | 5” | 141.3 | 6.6 | 2.8 | 3.4 | 6.55 | 9.53 | 9.53 | 12.7 | 15.9 | 19.1 | |||||
| 150 | 6” | 168.3 | 7.1 | 2.8 | 3.4 | 7.11 | 10.97 | 11 | 14.3 | 18.3 | 22 | |||||
| 200 | 8” | 219.1 | 8.2 | 2.8 | 3.8 | 6.4 | 8.18 | 10.3 | 12.7 | 12.7 | 15.1 | 19.3 | 20.6 | 23 | 22.2 | |
| 250 | 10” | 273.1 | 9.3 | 3.4 | 4.2 | 6.4 | 9.27 | 12.7 | 12.7 | 15.1 | 19.3 | 21.4 | 25.4 | 28.6 | 25.4 | |
| 300 | 12” | 323.9 | 9.5 | 4 | 4.6 | 6.4 | 10.3 | 14.3 | 12.7 | 17.5 | 21.4 | 25.4 | 28.6 | 33.3 | 25.4 | |
| 350 | 14” | 355.6 | 9.5 | 4 | 4.8 | 6.4 | 7.9 | 11.1 | 15.1 | 12.7 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 | |
| 400 | 16” | 406.4 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 12.7 | 16.7 | 12.7 | 21.4 | 26.2 | 31 | 36.5 | 40.5 | |
| 450 | 18” | 457.2 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 14.3 | 19.1 | 12.7 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 | |
| 500 | 20” | 508 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 15.1 | 20.6 | 12.7 | 26.2 | 32.5 | 38.1 | 44.5 | 50 | |
| 550 | 22” | 558.8 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 22.2 | 12.7 | 28.6 | 34.9 | 41.3 | 47.6 | 54 | ||
| 600 | 24” | 609.6 | 9.5 | 5.5 | 6.4 | 6.4 | 9.5 | 17.5 | 24.6 | 12.7 | 31 | 38.9 | 46 | 52.4 | 59.5 | |
| 650 | 26” | 660.4 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 700 | 28” | 711.2 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 750 | 30” | 762 | 9.5 | 6.4 | 7.9 | 7.9 | 13 | 12.7 | ||||||||
| 800 | 32” | 812.8 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 850 | 34” | 863.6 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 900 | 36” | 914.4 | 9.5 | 7.9 | 13 | 19.1 | 12.7 |
Ojas Pipes and Tubes is one of the largest Carbon Steel A671 Grade CC70 Pipes suppliers in Kolkata, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
Yes, we offer custom sizes for Carbon Steel A671 Grade CC70 Pipes to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.
