Carbon Steel A106 GR B Pipes

Home > Carbon Steel > Carbon Steel A106 GR B Pipes

Carbon Steel A106 GR B Pipes Manufacturer, Supplier and Exporter in Kolkata, India

Carbon Steel A106 GR B Pipes are made up of carbon (max 0.30%), manganese (0.29–1.06%), phosphorus (max 0.035%), sulfur (max 0.035%), and silicon (0.10–0.35%). They boast a minimum tensile strength of 415 MPa and a yield strength of 240 MPa, along with impressive elongation properties (~30%). These pipes are reliable under high temperatures and pressures, maintaining excellent ductility, hardness, and toughness. Their mechanical properties make them perfect for bending, flanging, and other forming processes, ensuring durability and structural integrity even in the toughest applications.

Carbon Steel A106 GR B Pipes Supplier in Kolkata, Carbon Steel A106 GR B Pipes Exporter in India, ASTM A106 GR B Pipes Sizes in mm, Carbon Steel A106 GR B Pipes Manufacturer in Kolkata, DIN 17175 ST 35.8 Pipes Price List in Kolkata, ASTM A106 GR B Pipes Distributor in Kolkata, Carbon Steel A106 GR B Pipes in India, Carbon Steel A106 GR B Pipes Supplier in Kolkata, Carbon Steel A106 GR B Pipes Distributor in India

Carbon Steel A106 GR B Pipes are primarily composed of carbon, with a maximum carbon content of 0.26%. They may also contain manganese, phosphorus, sulfur, and silicon. These pipes exhibit excellent mechanical properties, including a yield strength of 240 MPa (35,000 psi) and tensile strength ranging from 415 to 585 MPa (60,000 to 85,000 psi). Advantages include high strength, durability, and excellent performance in high-temperature and high-pressure environments. They are widely used in oil, gas, and power generation industries for their reliability and versatility.

Carbon Steel A106 GR B Pipes Specification

Standards	ASTM, ASME and API, ANSI B 36.10
Grades	ASTM A106 Grade A, ASTM A106 Grade B, ASTM A106 Grade C
Size	1/2” NB to 36” NB
Thickness	3-12mm
Schedules	SCH 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
Origin	European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)
Tolerance	Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm
Craft	Cold rolled and Cold drawn
Type	Seamless / ERW / Welded / Fabricated
Form	Round, Hydraulic Etc
Length	Min 3 Meters, Max18 Meters, or according to customer’s requirement
End	Plain End, Beveled End, Treaded
Specialized in	Large Diameter ASTM A106 Grade B Pipe
Additional Testing	Mill Test Certificates, EN 10204 3.1, Chemical /Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate, NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR
ASME Standard	B36.10M Welded and Seamless Wrought Steel Pipe
ANSI Standard	B1.20.1 Pipe Threads, General Purpose

Carbon Steel A106 GR B Pipes Chemical Composition

Element	ASTM A106 Carbon Steel Gr. B
C	0.30
Mn	0.29-1.06
P	0.04
S	0.04
Cu	0.40
Ni	0.40
Cr	0.4
Mo	0.15
V	0.08

Carbon Steel A106 GR B Pipes Mechanical Properties

Element	ASTM A106 Carbon Steel Gr. B
Tensile Strength	60,000 (415) MPa
Yield Strength (0.2%Offset)	35,000 (240) MPa

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASTM A106 Grade B Pipe Exporter in India, Carbon Steel A106 GR B Pipes Price List in Kolkata, Carbon Steel A106 GR B Pipes Supplier in India, Carbon Steel A106 GR B Pipes Exporter in Kolkata, Carbon Steel A106 GR B Pipes Exporter in Kolkata, ASTM A106 GR B Pipes Size Chart, Carbon Steel A106 GR B Pipes Price in India, DIN 17175 ST 35.8 Pipes Weight Chart, ASTM A106 GR B Pipes Thickness, Carbon Steel A106 GR B Pipes Supplier in Kolkata, DIN 17175 ST 35.8 Pipes Stockist in India

Why Choose Carbon Steel A106 GR B Pipes from Ojas Pipes and Tubes?

Choosing Carbon Steel A106 GR B Pipes from Ojas Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Carbon Steel A106 GR B Pipes Sizes

ASTM A106 Grade B Seamless Pressure Pipe OD milimeter	Pipe WT milimeter	inch	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Largest Carbon Steel A106 Grade B Pipes Supplier in Kolkata, India

Ojas Pipes and Tubes is one of the largest Carbon Steel A106 Grade B Pipes suppliers in Kolkata, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

Carbon Steel A106 GR B Pipes Supplier in Kolkata, ASTM A106 GR B Pipes Exporter in India, CS A106 GR B Pipes Manufacturer in Kolkata, Carbon Steel A106 GR B Pipes Price List in Kolkata, Carbon Steel A106 GR B Pipes Distributor in Kolkata, Carbon Steel A106 GR B Pipes in India, ASTM A106 GR B Pipes Supplier in Kolkata, Carbon Steel A106 GR B Pipes Distributor in India, DIN 17175 ST 35.8 Pipes Sizes in mm

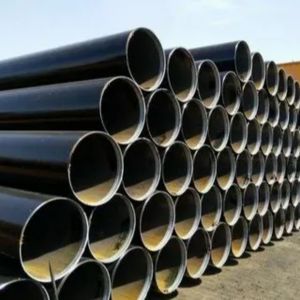

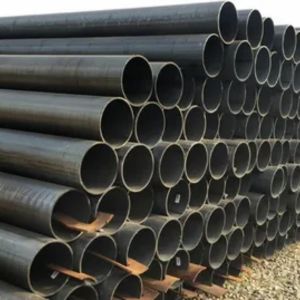

Types of Carbon Steel A106 GR B Pipes

Are Custom Sizes Available for Carbon Steel A106 GR B Pipes?

Yes, we offer custom sizes for Carbon Steel A106 GR B Pipes to meet your specific requirements. Our team at Ojas Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@ojaspipesandtubes.co.in.

Carbon Steel A106 GR B Pipes Exporter in India, Carbon Steel A106 GR B Pipes Price List in Kolkata, ASTM A106 GR B Pipes Supplier in India, Carbon Steel A106 GR B Pipes Exporter in Kolkata, Carbon Steel A106 GR B Pipes Exporter in Kolkata, Carbon Steel A106 GR B Pipes Size Chart, Carbon Steel A106 GR B Pipes Price in India, Carbon Steel A106 GR B Pipes Weight Chart, Carbon Steel A106 GR B Pipes Thickness, ASTM A106 GR B Pipes Supplier in Kolkata, Carbon Steel A106 GR B Pipes Stockist in India

Carbon Steel A106 GR B Pipes are extensively utilized in industries that require the seamless transport of fluids and gases under high pressure and temperature. Typical applications include oil and gas pipelines, petrochemical facilities, boilers, heat exchangers, power plants, refineries, and steam lines. They are also employed in shipbuilding, construction, and mechanical systems where strength and durability are paramount. With their excellent weldability and resistance to stress and corrosion, these pipes guarantee efficient, long-lasting performance across a range of demanding industrial settings, making them a trusted choice for engineers and project managers alike.
