Home > Alloy Steel> ASTM A335 Gr P91 Seamless Pipe

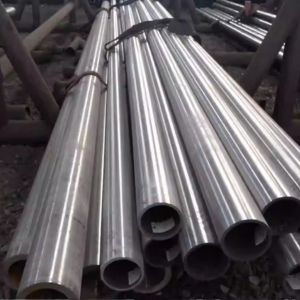

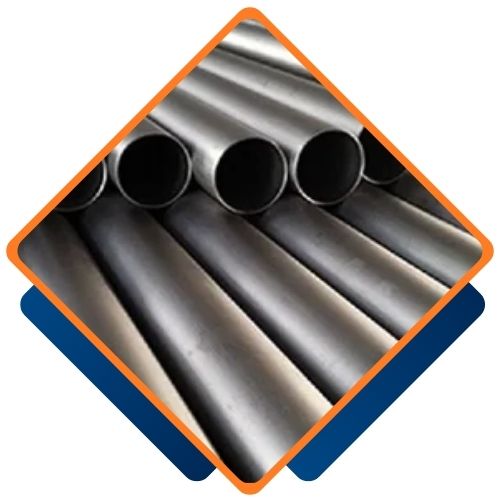

ASTM A335 Gr P91 Seamless Pipes are alloy steel pipes consisting mainly of Chromium (8-9.5%) and Molybdenum (0.85-1.05%) with minor additions of elements such as Carbon, Manganese, Phosphorus, Sulfur, Silicon, Vanadium, and Nitrogen. These all improve high-temperature strength, creep resistance, and corrosion resistance. The mechanical properties are minimum tensile strength of 585 MPa, minimum yield strength of 415 MPa, and very good hardness and elongation. The microstructure is usually tempered martensite, providing better thermal stability and strength, thus making them applicable in extreme pressure and temperature environments.
| ASTM A335 Alloy Steel P91 Pipe Size | : | 1/8NB TO 24NB IN |
| Alloy Steel ASTM A335 P91 Standards | : | ASTM A 335, ASME SA 335, UNS K11522 |
| ASTM A335 P91 Alloy Steel Pipe Type | : | Seamless |
| ASTM A335 Alloy Steel P91 Specialized in | : | Large Diameter Size |
| ASTM A335 Alloy Steel P91 Pipe Outer Dimensions | : | 19.05 – 114.3mm |
| Alloy Steel ASTM A335 P91 Pipe Wall Thickness | : | 2.0 – 14 mm |
| Alloy Steel ASTM A335 P91 Pipe Suppliers Length | : | max 16000mm |
| ASME SA335 P91 Alloy Steel Pipe Schedule | : | Schedule 20 – Schedule XXS (heavier on request) up to 250 thk. |
| ASTM A335 Alloy Steel Pipe Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| Alloy Steel ASTM A335 P91 Pipe Length | : | Single Random, Double Random & Cut Length. |
| ASTM A335 P91 Pipe End | : | Plain End, Beveled End, Treaded |
| Grade | C % | Mn % | P % | S % | Si % | Cr % | Mo % |
|---|---|---|---|---|---|---|---|
| P91 | 0.08-0.12 | 0.30-0.60 | 0.020 max | 0.010 max | 0.20 -0.50 | 8.00 – 9.50 | 0.85 – 1.05 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
|---|---|---|---|
| P91 | 585 min | 415 min | 20 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing ASTM A335 Gr P91 Seamless Pipe from Ojas Pipes and Tubes ensures superior corrosion resistance, excellent thermal conductivity, high strength, and long-lasting performance. Our commitment to quality and precision makes our pipes and tubing ideal for demanding industrial applications.
Ojas Pipes and Tubes is the largest supplier of ASTM A335 Gr P91 Seamless Pipe in Kolkata, India. We offer premium-quality, corrosion-resistant pipes and tubing ideal for marine, chemical, and industrial applications, with our reliable delivery and customized solutions to meet diverse client needs.
Yes, custom sizes are available for ASTM A335 Gr P91 Seamless Pipe to meet specific requirements. These pipes can be tailored for various industrial applications. For more details, contact us at sales@ojaspipesandtubes.co.in.
ASTM A335 P91 Seamless Pipes are commonly utilized in high-pressure and high-temperature environments, especially within power generation and thermal plants for headers, reheaters, and superheaters. They are particularly suited for nuclear and fossil fuel power systems, heat exchangers, and boiler tubes. In the petrochemical and oil & gas industries, P91 pipes are employed for pipelines and processing equipment because of their high resistance to creep as well as oxidation. These pipes also find applications in steam piping systems, refineries, and chemical plants where reliability and long life under harsh conditions are required.
